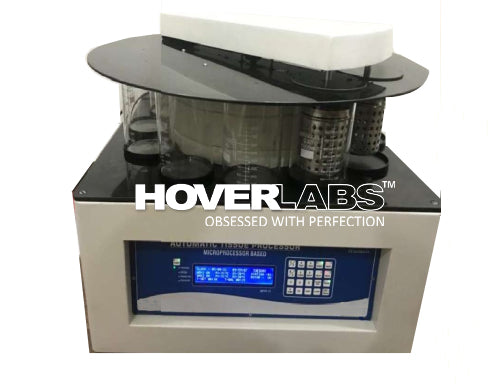

AUTOMATIC TISSUE PROCESSOR 2 LITER DOUBLE BASKET (VACCUM) (Model: HV-MPT -02)

AUTOMATIC TISSUE PROCESSOR 2 LITER DOUBLE BASKET (VACCUM) (Model: HV-MPT -02)

Automatic Tissue Processor is designed to prevent a solution to the rapid processing of tissue in Histology Laboratories. HV-MPT-02 removes all the water from a tissue sample and replace sit with paraffin wax with optimum speed to curtail damage to tissues caused by dehydration and shrinkage.

Technical Specifications: -

- System Is Prudent and Well-Guarded

- Feather Touch Keyboard

- Digital Display

- Ergonomic Control Panel

- Easy To Clean

·System is prudent and well-guarded, immediate and delayed start processing modes

·Design is stout and proposes unswerving performance on smallest space.

·Operated by Feather touch keyboard with digitally display. Display shows: Real time, date, month, audible alarm, error messages and warning codes.

·Wax bath temperature: set temperature and attain temperature. Station no. Is display in which tissue basket is running.

·Station time and lapse time shown on display.

·All electrical switches used as ISI marked and silver coated and heavy duty.

·Glass beakers without lip to avoid evoporisation borosil 1/2 litre capacity.

·Leak-proof wax bath.

·Internal parts fabricated from LM grade Aluminium.

·Centre brass rod moving on linear bearing.

·Heavy duty rotor motor used for agitation.

·System has an ergonomic control panel with foil protected keyboard and LCD display to show all parameters like program number, duration, time, date, paraffin bath temperature etc.

·Bench top carousel tissue processor with 12 station, ten reagent vessels and two paraffin baths for single basket operation.

·Included with wax bath over temperature (at 75°C) and under temperature cut-off facility for the safety of tissues.

·Has agitation in 3 sec intervals with on/off function for through and even mixing of regents

·Auto restart function is available

Comes with storage facility of 9 or more freely selectable programs. Programs include selection of infiltration time, agitation, facility, basket selection facility etc.

· Provided with locking facility for user to avoid inadvertent change of the process parameters during operation.

· Power supply – operable at 230v, 50 Hz, inbuilt battery backup system for at least 30 minutes in case of power failure

· Drain time of 60 sec in each station of reduce carry over contamination

· Programmable immersion time from 1 minutes to 99 hours: 59 minutes)

· Delayed start up function to a maximum of 9 days

· Facility of beaker being automatically immersed in a station during the Power failure (Optional)

· Reagent vessel tops and charcoal- enhanced ventilation help control processing vapours

· Up to 7 different processing programs maintained and basket has capacity of 100 cassettes

· Facility of manual lifts the carousal and removable tissues in case of long power failure

Standard Accessories:

- Main unit- One

- Tissue Basket- Two

- Wax Bath- Two

- Main Lead- One

- Dust Cover- One

- Tissue Capsule Small & medium- Twenty-Five

- Glass Beaker- Twelve

- Glass fuse- Two

Internal Code: - KD.2750.251121
