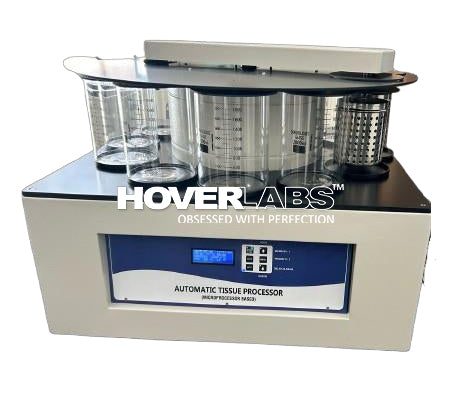

AUTOMATIC TISSUE PROCESSOR (Model: HV-02-TP)

AUTOMATIC TISSUE PROCESSOR (Model: HV-02-TP)

Automatic tissue processor is designed to prevent a solution to the rapid processing of tissue in Histology Laboratories. It removes all the water from a tissue sample and replaces it with paraffin wax with optimum speed to curtail damage to the tissues caused by dehydration and shrinkage.

Technical Specification: -

• 2 Litre Single Basket

• Operated by feather touch keyboard with digital display. Display shows: Real time, date, month and year. Station no. is display in which tissue basket is running. Station timeand lapse time shown on display.

• All electrical switches are silver coated and heavy duty

• Leak proof wax bath

• Internal parts fabricated from LM grade aluminum

• Center brass rod moving on linear bearing

• Heavy duty rotor motor used for agitation

• Individual lids cover the glass beakers to avoid evaporation

• Thread lock used after tightening the assembly screw and bolts.

• Easy to clean platform

• Safety device for tissue in case wax not melted the basket stop at the station 10th-11th till the temperature is not attained

• Trouble free and maintenance free

• Heavy gauge used in fabrication of body

• Wax bath stainless steel inner outer with Teflon coated wire used in heater with

best quality heating wire with thermal cut out of 75°C

• External body powder coated to avoid chipping and anti-rusting chemical used all

moving parts moving on bell bearing oil sealed

• Main motor used Korean Geared motor to avoid vibration and sound

• In case of emergency side lifting handle provided to take out Tissue basket in case of electricity failure

• Tissue basket capacity of 30 and 80 according the size of the processor whether it is 1 liter or 2 liters. Rotary head have a lock out facility at the end of run to prevent basket moving from station 12 to station 1

• 10 stations with organic solvent resistant lipless beakers of 1 liter. Capacity

• Minimum of 2 temperature controller wax baths of 1 ltr. Capacity

• Wax bath have user definable temperature range of at least 50°-65° with a high

temperature cut off at 75°C ±5°

• Individual programmable timing sequence for each station from 1 min to 6 hrs. In

increments of 1 min and programmable delay start time of up to 99 hrs.

• Retain cycle information in case of power failure to continue processing on

restoration of power

• weight- 54kg

• size- 30x30x23

1-liter double basket

Internal Code: - KD.4109.260521
