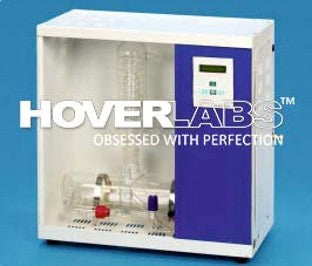

Automatic Water Distillation Equipment (Cabinet Model) (Model: HVL- 20S)

Automatic Water Distillation Equipment (Cabinet Model)

(Model: HVL- 20S)

Technical Specification: -

This is a fully automatic water distillation equipment and can be used in research laboratories, hospitals etc. It is manufactured from 3.3 exp borosilicate glass or quartz glass.

• Replaceable Silica Sheathed (Quartz) Heater: The horizontal jacket is fitted with removable silica sheathed heater and screw threaded connectors for ease of cleaning.

• Distillate temperature is approx. between 25° to 45° C which is ensured by an efficient condenser.

• The stand is powder coated for rust free operation and lustrous appearance.

• Cooling water from the condenser is re-circulated into the boiling chamber, hence saving energy.

• Screw Threaded Connectors: These are provided for easy plumbing & Installation to avoid any glassware breakage during assembly.

• Fuse is provided for safety in case of voltage fluctuation or short circuit.

• Boiler is provided with Replaceable Constant Level Device for easy draining and cleaning of boiling chamber.

• The front cover is easily removable making the access to the glass parts very easy.

• Electrical Power: 220/240 V, 50/60 Hz, Single Phase Supply

Borosilicate Glass

- Output Cap. (approx.): 2 ltrs/hr

- Stage: Single Stage

- Distillate Quality: Pyrogen Free

- Conductivity: µSiem: 1.0-2.0

- Cooling Water Requirement (approx.): 1.5 ltr/min

- Power Rating (Total) 1.5 KW

Internal Code: - KD.4016.260410
