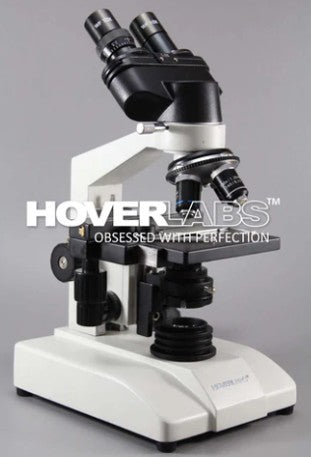

Binocular Lab Pathological Microscope (Model: HV-12)
Binocular Lab Pathological Microscope (Model: HV-12)
Couldn't load pickup availability
Binocular Lab Pathological Microscope (Model: HV-12)
Technical Specification: -
HV-12 Series of Inclined Microscopes are used for education, training analytical and research work in Colleges, Hospitals, Laboratories and institutes. It has a heavy sturdy body & base for stability and is fitted with Quadruple revolving nosepiece. Its stage size is 140x120mm with low coaxial controls for easy slide manipulation on both the axis with graduation and verniers, range of movements is 80x50mm. Condenser unit is having rack & pinion movement with Abbe Condenser N.A.1.25, Iris-diaphragm and filter holder. Having built-in base illumination system fitted with a Halogen Lamp 6V-20W operated on 220 volts (Optional 110volts). Built in transformer is controlled by variable solid state electronic knob. There are three different inclined observation heads (interchangeable): Monocular, Binocular & Trinocular inclined at an angle of 45o and rotatable through 360o.Having following optical combinations: Achromatic or Semi Plan or Din Size Semi Plan Objectives: 4X,10X,40X SL & 100X SL (oil), Eyepieces: WF 10X
Internal Code: - KD.2942.260122
Warranty and support
Warranty and support
Every HOVERLABS instrument carries a 1-year standard warranty with installation and after-sales support across India. Units are tested on up to 230 quality parameters before dispatch, and transit damage is covered under our shipping policy.
Shipping and payment
Shipping and payment
Free shipping across India with no packaging charges. Institutions can order via purchase order, NEFT/RTGS or UPI, and credit terms are available for eligible buyers. Add your GSTIN at cart for a GST tax invoice. Export enquiries: LC or wire transfer, all Incoterms.
