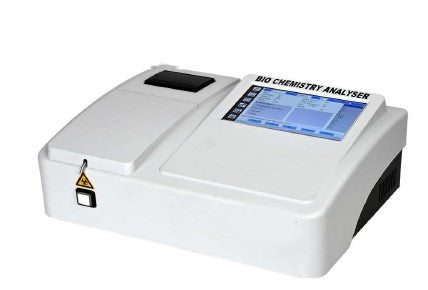

Biochemistry Analyzer (Model No. HVO-BCA80)

Biochemistry Analyzer

Specification

• Analysis method: Kinetics, End point, Two point, Multi-point.
• Light source: Halogen Lamp 10W/6V
• Optical System: 340-800nm
• 7 Standard Filter: 340, 405, 492, 510, 546, 578, 630nm wavelength, Accuracy ±2nm
• ABS Range: 0.000-4.000Abs, resolution: 0.001ABS
• Flow cell & Optical Path: Titanium Quartz Alloy 33ul; Optical, Path: 10mm
• Temperature: Peltier Elements, 37°C, Room ±1 °C
• Precision: Error<1 %, drift< 5mAbs /hr
• Printer: Thermal Printer, 57mm Width Paper
• Display: 7" Touch screen,800 x 480pixels
• CPU:  Samsung S5PV210, Cortex-TM-AB,1GHZ
• Memory: DDR2 SDRAM,256MB Flas h:4G B
• Interface: 3 USB Ports, 1 RS232 Serial port
• Power Supply: AC 220V, 50/60Hz

Salient Features

• Back Spectro photometry, 7 hard membrane filters, separate signal process circuit for each wavelength, filters select completed electronically, no mechanical movement

• Hermetic solid-state optical system, low contamination of dust and dampness, long life time of hard membrane filters

• Titanium alloy flow cell with small capacity and minimize cross-contamination

• 200000 Test data and 300 test programs can be saved

• 7"touch screen,800x480pixels

• Built-in thermal printer, USB for external printer
• Ambient temperature 10°C to 30°C
