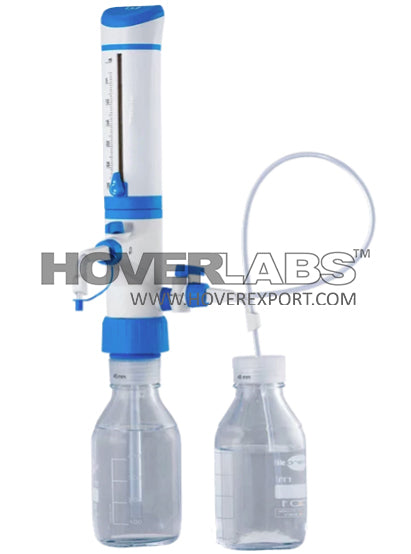

Bottle Top Dispenser with Dual Inlet (Model No. HVO-DL-BTD)

Bottle Top Dispenser with Dual Inlet

Bottle Top Dispenser (BTD) that works on Dual Inlet Technology. It offers a sophisticated blend of features and functionality, along with four modes of operation.

It offers 4 liquid handling modes – rinsing, dilution, refilling & purging without dismounting the dispenser.

Modes of Operation

• Standard Dispensing: Knob A – Open, Knob B – Closed
  In this mode, the dispenser dispenses the liquid normally into the receiver from the bottle it is mounted on.
• Purging: Knob A – Closed, Knob B – Closed
  In this mode, the liquid is re-circulated into the same bottle on which the dispenser is mounted. This process removes the air from the dispenser, without wasting any reagent.
• Dilution/Rinsing/Second Liquid Dispensing: Knob A – Open, Knob B – Open
  In this mode, the liquid from a second source can be dispensed into the receiver. The second liquid can be distilled water, thus allowing the user to rinse the instrument without dismounting it or dilute the reagent within the receiver.
• Bottle Refilling: Knob A – Closed, Knob B – Open
  In this mode, the liquid from a second source
  can be used to refill the bottle without dismounting the dispenser.

Features:

• Change Volume with Easy Knob: It is a specially designed volume adjustment knob that allows 180° rotation for easy and effortless volume setting.
• Move effortlessly with a PTFE Piston: The instrument is equipped with a PTFE Piston with an ETP O-Ring. It facilitates smooth and effortless movement and ensures high chemical compatibility.
• Re-direct Liquids with Recirculation Valve: Recirculation Valve prevents the loss of reagents during purging by re-directing them into the mounted bottle and facilitates bubble free dispensing.
• Dispense Easily with Flexi Nozzle: The instrument comes with Flexi Nozzle, an adjustable delivery nozzle. It offers a high degree of flexibility, facilitating easy dispensing in demanding laboratory conditions.
• Work Flexibly with a 360° Adapter: A specially designed Adapter allows 360° rotation, facilitating complete work flexibility.
• Work with a Comprehensive Volume Range: Available in six unique volume ranges.
• Autoclaving Parameters: It is fully autoclavable at 121°C and 15 psi for a duration of 10-15 minutes.
