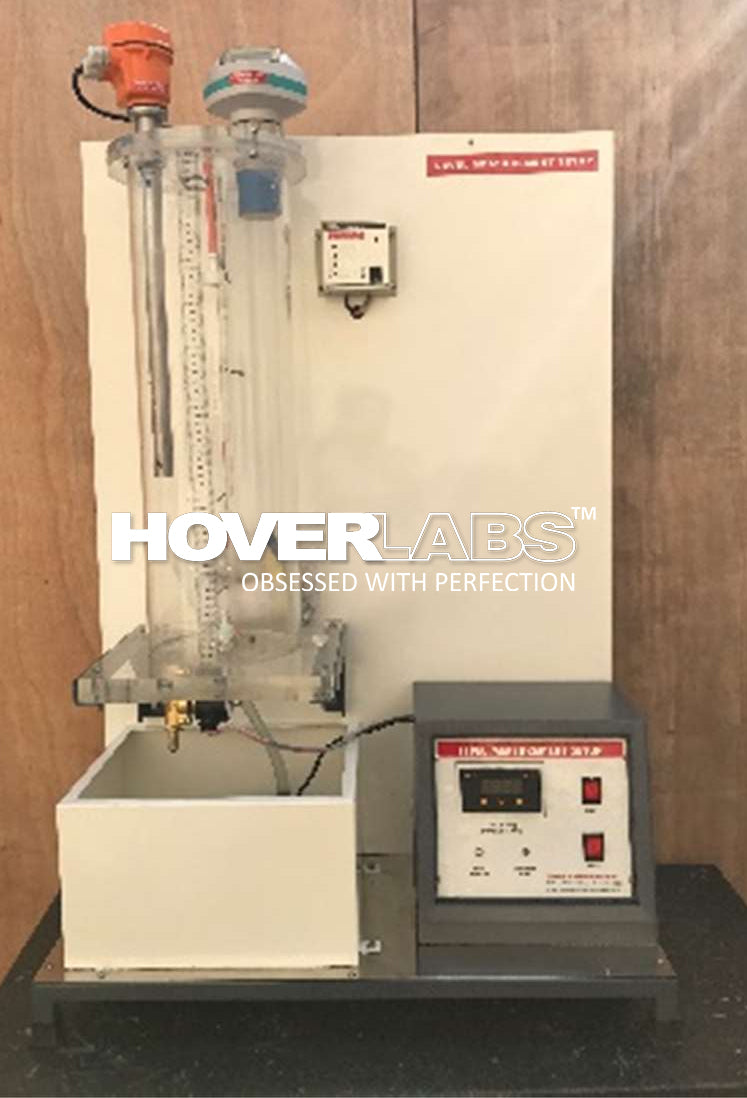

CAPACITANCE LEVEL INDICATOR (Model: HVL-331)
CAPACITANCE LEVEL INDICATOR
(Model: HVL-331)
Technical Specifications: -
Level measurement system is designed for understanding the basic principles of level measurement. The level transmitter used for level sensing is fitted on transparent process tank. The Level is displayed by digital indicator. Units along with necessary piping are fitted on support housing designed for tabletop mounting. All the components along with necessary piping and fittings are mounted on support housing designed for tabletop mounting. Set-up enables Level measurement system Working, calibration, accuracy, and repeatability.
|
Product |
Level Measurement |
|
Product code |
MI 331 |
|
Differential pressure transmitter |
Type Capacitance, two wire, Range 0–200 mm, Output 4–20 mA Linear (Calibrated) |
|
Level indicator |
Digital, Range 0-200mm, Supply 230VAC |
|
Beaker |
Glass, Capacity 50ml |
|
Overall dimensions |
375Wx325Dx525H mm |
SPECS:
Capacitance Level indicator,Made up of S.S. sump tank, Acrylic measuring tank, S.S. pump, Level transmitter – Range : 0 – 500 mm WC Accuracy: +/- 3 %
With HART version 6. Output : 4-20 mA DC
Probe: fully insulated rod probe with pre-amplifier with necessary piping arrangement, mounted on suitable frame structure.
FEATURES
· Table mounted set-up
· Compact and simple to operate
· DP transmitter moved UP and DOWN
EXPERIMENTS
· Study of Level measurement.
· Study of DP calibration.
UTILITIES REQUIRED
Electric supply : 230 +/- 10 VAC, 50 Hz, 1 phase.
Water : Clean water 2 Liter
