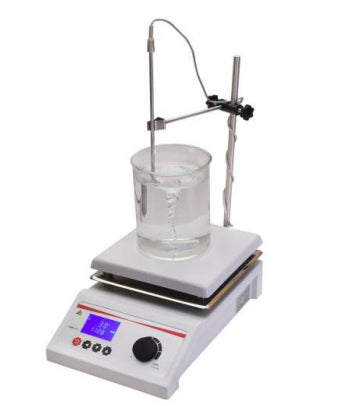

Ceramic Hotplate Magnetic Stirrer (Model No. HV-5LC)

Ceramic Hotplate Magnetic Stirrer

Salient Features :

• Digital LCD display with back light
• Big Size Ceramic hot plate with flame protection and durability
• Heating and stirring can proceed simultaneously.
• Temperature & Stirring speed is stepless adjusted.
• Real temperature & speed display on the screen simultaneously
• Two sensors, outside PT 100 sensor controls the liquid temperature, inside K type sensor control the hot plate temperature (selectable)
• Over temperature alarm

Specifications :

• Display : Digital
• Speed (RPM) : 100-2000
• Plate Size (mm) : 190 x 190
• Top Plate Type : Ceramic
• Max. Volume (ml) : 5000
• Temp. Controller : 5000
• Temp. Controller : PID
• Max Temp. ( Plate Surface) : 300 C
• Temp. resolution : 0.1C
• Temperature Accuracy : ±0.5℃ (< 100℃)±1℃(<300℃)
• Power Wattage : 600 W
• Power supply : AC 220V / 50Hz
• Dimension LxWxH (mm) : 300 x 190 x 126
