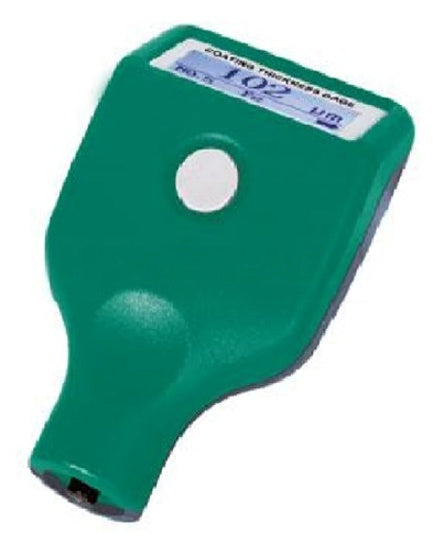

Coating Thickness Gage (Model No: HVK-311)

Coating Thickness Gage (Basic Type)

•Measuring Range:  0-2000μm

•Resolution:  0.1μm (range<100μm); 1μm (100μm<range<1000μm); 0.01mm (1.00mmsranges 2mm)

•Accuracy:  ±(2µm+3%L) ('L' is measuring thickness in µm

•Measuring Interval: 0.5s

•Calibration Mode: zero calibration

•Measuring Mode: Fe, NFe, Fe/NFe

•Minimum Substrate thickness: Fe (0.2mm), NFe (0.05mm)

•Minimum measuring area: Ø25m

•Minimum curvature radium of workpiece: Convex Surface: 5mm, Concave Surface: 25mm

•Unit: µm/mil

•Power supply: 2x1.5V AA batteries

•Main Unit Dimension: 101x62x28mm

 Internal code: VA.9002.240403
