Product details

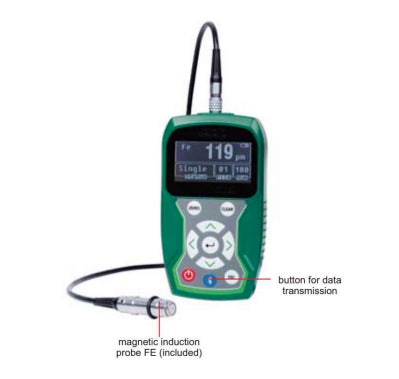

Coating Thickness Gage
Specification:
- Probe Types: Magnetic Induction Probe FE (included)
- Measuring Range: 0-1250μm
- Accuracy:
±(3%L+10)µm (range<1250µm) ('L' is measuring thickness in µm)
- Resolution: 0.1µm (range<100µm); 1µm (range<100µm)
- Measuring mode: Single and Continuous
- Minimum Substrate thickness: 0.5mm
- Minimum measuring area: Ø7mm
- Minimum curvature radium of convex workpiece: 1.5mm
- Memory: 600
- Output: USB
- Power supply: 2x1.5V AA batteries
- Dimension: 134x77x32mm
- Weight: 172g
Features:
- Magnetic induction probe (FE) is to measure the thickness of non-magnetic coating on magnetic substrate (Substrate: iron, steel, magnetic stainless steel (does not include non-magnetic stainless steel) Coating: zinc, copper, chrome-tin, plastic powder, paint (does not include nickel)
- Eddy current probe (NFE) is to measure the thickness of non-conductive coating on non-magnetic metal substrate (Substrate: copper, aluminum, zinc, non-magnetic stainless steel Coating: plastic powder, paint, anodizing (not for chrome and zinc plating)
- Tolerance measurement
- Data statistic, including average, variance, maximum and minimum values
- Data can be sent to Excel by connecting to computers via Bluetooth or cable of receiver
- Support Bluetooth printer
- Automatic power off
Standard Delivery
- Main Unit: 1Pc
- Magnetic induction probe (FE): 1Pc
- Zero calibration block for FE Probe: 1Pc
- Calibration foils (50µm, 100µm, 250µm, 500µm, 1000µm): 1Set
- 1.5V AAA battery: 2Pcs
- Software and USB cable: 1Pc
Optional Accessory:
- Receiver
- Cable of receiver
- Bluetooth printer
- Eddy Current Probe NFE
- Magnetic Induction Probe for Bores and Grooves
- Magnetic Induction Probe with Big Range FE10
