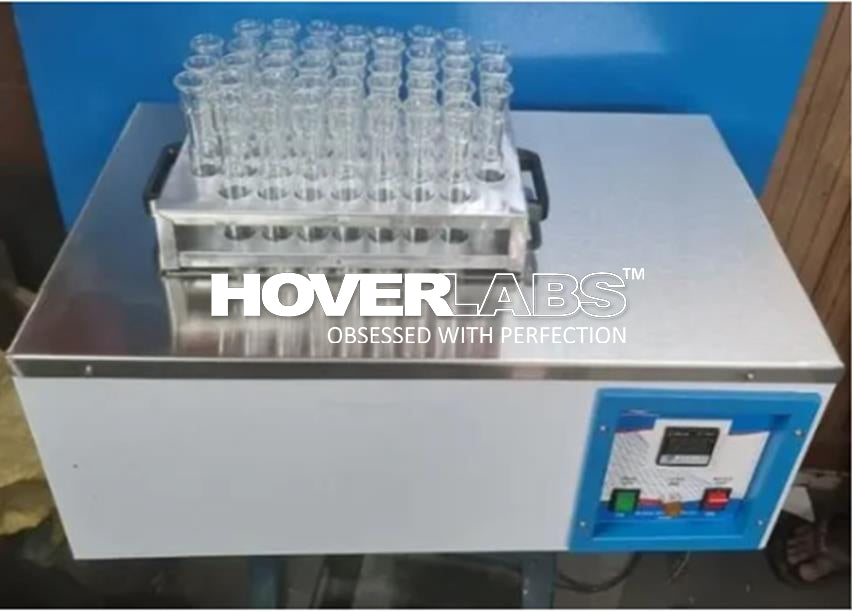

COD Digestor (MODEL NO. HVS-CD400)

COD Digestor

(MODEL NO. HVS-CD400)

Technical Specification: -

• COD Analysis Thermarator’s ensure a simple and easy programming of time and temperature, the parameters involved in the analysis

•  25-position Ø16 mm Thermarator’s for Chemical Oxygen Demand (COD)

• By clicking on the appropriate key, the user can select the temperature and time among different options (70, 100, 120, 150 and 160 °C and 30, 60, 120 minutes or continuous)

• The unit automatically shuts down when the analysis time expires, whilst safety is of primary importance, as demonstrated by the several acoustic and visual signals that report unpleasant situations.

• Suitable for performing a short time COD analysis, in only 30 minutes with a high digestion temperature (160 °C)

Construction material Epoxy painted metal structure Set temperature display visualization, countdown display visualization End of the cycle acoustic signal with automatic switch-off Temperature stability ± 0.5 °C

• Temperature homogeneity ± 0.5 °C Temperature precision ± 1 °C Over temperature safety

• Reaching of set temperature acoustic and visual signal Countdown visual signal

• End of cycle acoustic and visual signal Probe interruption acoustic and visual signal

• Broken probe acoustic and visual signal

• Exceed temperature range acoustic and visual signal

• Supply should include digestion tubes of 25 packs 0 - 1500 mg/L Power 400 W

• Power supply 230V/50-60Hz Must be CE certified

INTERNAL CODE: - KD.2569
