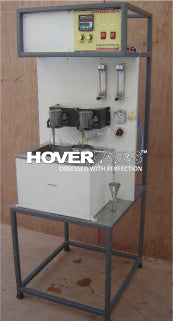

COMPUTER CONTROLLED ISOTHERMAL CONTINUOUS STIRRED TANK REACTOR (ISOTHERMAL CSTR)
(Model: HVL-02-C)
Technical Specifications: -
In an ideal CSTR (Le. an ideal steady state flow reactor) the contents in reactor are well mixed and have uniform composition throughout. Thus, the exit stream has the same composition as the fluid within the reactor. This type of reactor is known as mixed flow reactor. This set-up is used to study a non-catalytic homogeneous second order liquid phase reaction under isothermal condition. The set up consists of two feed tanks through which two reactants are fed to the reactor. Peristaltic pumps are provided to measure the individual flow of Chemicals. Constant temperature water bath arrangement is provided to conduct the experiment at various temperatures. Reactants enter at lower end coming out of the top of reactor from where samples are collected and passed through conductivity meter for analysis.
EXPERIMENTS
· Saponification Reaction study in Isothermal CSTR
· To determine the Reaction Rate Constant and effect of temperature on it
UTILITIES REQUIRED
· Water Supply & Drain
· Electricity Supply: 1 Phase, 220VAC, 1.5kW.
· Instruments, Laboratory Glassware and Chemicals required for analysis as per the system adopted
· Computer System
|
Reactor |
Material Stainless Steel, Capacity 2 Ltrs. (Approx) |
|
|
Water Bath |
Material Stainless Steel, Double wall, insulated with Ceramic Wool |
|
|
Heater |
Nichrome wire Heater with control unit. |
|
|
Stirrer(2Nos.) |
Stainless Steel Impeller and shaft coupled with FHP motor. (One each for Water Bath and Reactor) Manual as well as Computer controlled. |
|
|
Feed Tank (2Nos.) |
Material Stainless Steel (2 Nos.), Capacity 20 Ltrs. with level indicators, air release valves, charging funnel with valve, air pressure fittings, feed lines, drain valve etc. |
|
|
Feed Circulation |
Peristaltic pumps : 2nos (One each for reactants) speed variation with computer control with following specifications,RPM: 0.1 to 300.0 RPMRPM Precision: 0. 1 RPMFlow rate: 0.01 to 4000-5000 ml / min Set point & Control: Front Panel Knob Encoder |
|
|
Start/Stop, CW/CCW control & filling Display: 4 Digit LED with function symbols, Functions: Programmable flow Rates Option for Start / Stop foot pedal Switch Brand Design Innova(Calibration certificate attached) |
|
|
|
Conductivity measurementMicroprocessor based electronic conductivity meter 0-1999 µS/cm2 with digital display with 4-20mA output for computer interface. |
|
|
|
Feed Piping PVC / SS |
|
|
|
Temperature measurement & ControlRTD PT-100type range 0-199.9°C. Digital Temp. Controller: 0-200°C. RTD PT-100type (For Water Bath) controlled by Manual / PC. |
|
|
|
Control panel Digital Temp. Controller: 0- J.99.9°C (For Hot Water Bath), On/off switch, Mains Indicator etc. |
|
|
|
Computer Interfacing Software & Hardware SOFTWARE SUPPLIED It will consist of Graphical User interface under customized LabView software suitable for windows operating system environment with following Software feature as per your application to be completed by us: - · Interfacing of all type input sensor through USB DAQ module to PC. · Front end software for acquiring data from different type of sensor. · Temperature control through controller using analog output, · Software consist Graphical User Interface for input parameter profileas well as numeric indicator. · Controlling temperature using PID algorithm. · PID algorithm for accurate and best performance. · Implementation of operation sequence with specified safety inter locks based on acquired analog inputs. · Software provides safety interlocking feature to avoid emergency conditions. · Data Logging facility for all parameters in specific format. · The acquired parameter will be available for display in Excel format and graphical form for ease of analysis and optimization of the system. INTERFACE HARDWARE National instrument / Equivalent DAQ card with SCADA Software |
|
|
|
The whole setup is well designed and arranged on a rigid structure painted with industrial PU paint. |
|
|
YOUR SPECS:
Reactor trainer with all controlling accessories, With all Controlling Accessories.
INTERNAL CODE: - KD. 13-1-19-19-0-9-14-20-5-18-14-1-20-9-15-14-1-12
