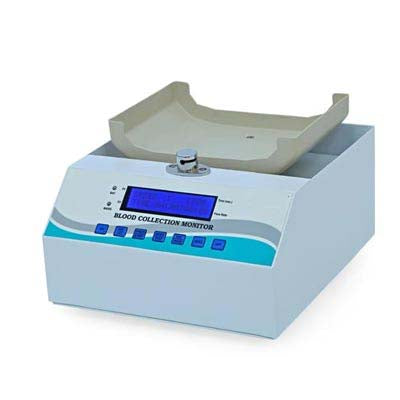

Blood collection monitor is a compact instrument to provide smooth and gentle rocking movement to facilitate homogeneous mixing of blood with anticoagulant to avoid clotting during collection of blood from a donor.
Special Features
- Volume can be set in 1 ml increments
-
Provision of pausing the collection and changing programmed volume during pause
-
Micro controller based program
-
Display of Weight, Volume and Time taken for collection
-
Auto tare facility
-
Motor activated clamping at the end of the collection
-
Audio-visual alarm in case of any abnormal condition
-
User friendly massages
-
Diagnostic mode massages for technical analysis
-
Automatic Alarm functions if the ow rate is less than 20 ml per minute during the blood collection
Technical Specifications
Speed (rpm) |
10 |
Speed accuracy (rpm) |
±2 |
Maximum Volume (ml.) |
999 |
Accuracy (ml.) |
±10 |
Readability (ml.) |
1 |
Calibration |
Auto |
Voltage |
90 – 270 V AC / 50 – 60 Hz |
|
|
|
