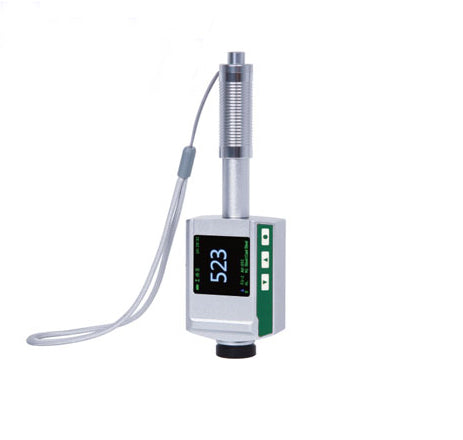

Portable Leeb Hardness Tester (High Accuracy) (Model No. HVO-HDT-L410)
Portable Leeb Hardness Tester (High Accuracy)
Specification:
-
Resoluton: 1HLD; 1HV; 1HB; 0.1HRC; 0.1HRB; 0.1HRA; 0.1HS; 1SGM
- Accuracy: ±4HLD (when HLD= 800)
- Applicable workpiece:
- + Minimum weight: 5kg (direct measurement); 2kg (on solid support); 0.05kg ( coupled on plate)
- + Minimum thickness: 5mm
- + Minimum radius of curved surface: 30mm
- + Maximum roughness (Ra): 2µm
- Power supply: built-in 3.7V rechargeable battery
- Dimension; 148x44x22mm
- Weight: 115g
Standard Delivery:
- Main Unit: 1Pc
- Hardness Test Block D:1Pc
- Small Support Ring: 1Pc
- Cleaning brush: 1Pc
- AC/DC Adapter: 1Pc
- Software flash disk and USB cable: 1Pc
Features:
- Metal housing
- HD TFT 320x320 display
- Impact device D
- Based on Leeb (HLD), converted to Vickers (HV), Brinell (HB), Rockwell (HRC, HRA and HRB), Shore (HS) and tensile strength (SGM)
- Four display modes
- Automatic direction correction
- Tolerance testing
- Automatic power off, automatic calculation of statistics
- Dual value display, shows both Leeb and other conversion values
- 31 files can be saved, each containing 100 measurement data
- Connected to PC software via USB or Bluetooth 2.0
- Connected with printer via Bluetooth
- Operation temperature: -20°C-70°C
- According to ASTM A956, DIN 50156, GB/T 17394
