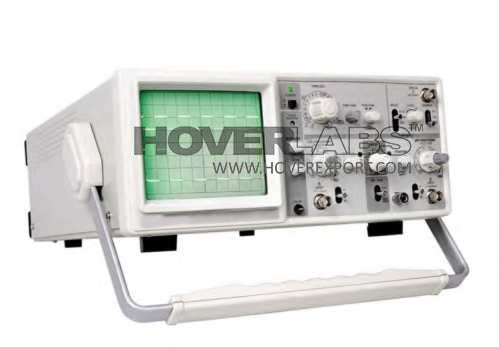

CRO CATHODE RAY OSCILLOSCOPE ANALOG (MODEL:HV-466-CRO)

CRO CATHODE RAY OSCILLOSCOPE ANALOG

MODEL: - HV-466-CRO

TECHNICAL SPECIFICATION: -

CRO 30 MHz, Dual Channel, 2 Trace

Highest Sensitivity: Up to 1 mV/div (after expand)

Trigger Features: Full-band auto sweep circuit, flexible trigger mode (CH1, CH2, or external signal), alternate trigger for viewing relative signals from two sources, and external trigger input.

Power Supply: AC 200V 10%

Specifications

Bandwidth:

AC: 10 Hz to 30 MHz (-3 dB)

DC: 0 to 30 MHz (-3 dB)

Y Deflection: 5 mV/div to 20 V/div

Rise Time: < 18 ns (Mag x5 accuracy: < 5%)

Maximum Input: 400 V (DC + AC p-p)

Sweep Mode: Auto, Triggered, Locked, Single

Sweep Rate: 0.1 s/div to 0.2 s/div, 1-2-5 steps across 20 steps, error 5%

Trigger Source: Y1, Y2, ALT, Line, External, TV-H, TV-V

Z-Axis Maximum Input: 400 V (DC + AC p-p)

Minimum Input Level: TTL Level

Waveform: Square wave

Amplitude: 1 kHz 2%

Frequency: 0.5 V p-p 2%

INTERNAL CODE: - KD. 2323.25614
