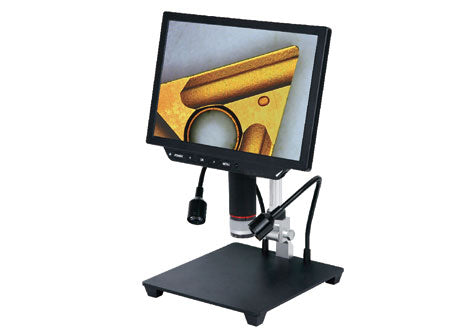

Digital Microscope (Model No. HVO-5309-DM50)
Digital Microscope
Specification:
- Arm Type Straight
- Sensor: 1/2.8" CMOS
- Pixel: 2M
- Resolution: 1920x1080
- Exposure: Real-Time Auto, Single Auto, Manual Adjustment
- White Balance: Real-Time Auto, Single Auto, Manual RGB Adjustment
- Record Format: Pictures: JPG video: MOV
- Record Media: Memory Card
- Working Distance: 45-169mm
- Magnification: 9-41X
- View Field: 7.6x4~38.5x21.7mm
- Power Supply: DC12V 3A
Use Computers Optional
Image Magnification |
View Field |
Measuring Accuracy |
9X | 38.5x21.7mm | ±0.02µm |
13.0X | 26.6x15.0mm | ±0.02µm |
17.0X | 20.5x11.7mm | ±0.02µm |
22.0X |
16.0x9.0mm | ±0.02µm |
28.5X | 11.9x6.3mm | ±0.02µm |
34.0X | 9.8x5.5mm | ±0.01µm |
41.0X | 7.6x4.1mm | ±0.01µm |
Features
- Independent control of vertical illumination and diffuse illumination
- Back focus adjustment extends working distance
- Take pictures and videos, save to memory card
STANDARD DELIVERY
- Main Unit: 1Pc
- Memory Card Holder: 1Pc
- Plastic Calibration Rule (graduation 1mm): 1Pc
- White/Black Plate: 1Pc
- Remote Controller: 1Pc
- USB Cable: 1Pc
- Measuring Software: 1Pc
- Power Adapter: 1Pc
