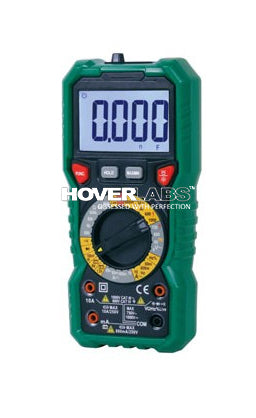

Digital Multimeter (with Jack Indicator Light) (Model No. HVO-9246-180)

Digital Multimeter (with Jack Indicator Light)

Specification:

Function: DC Voltage

• Range: 600mV/6V/60V600V/1000V
• Resolution: 0.1mV/0.001V/0.01V/0.01V/0.1V/1V
• Accuracy: ±(0.5%+3)

Function: AC Voltage

• Range: 6V/60V/600V/750V
• Resolution: 0.001V/0.01V/0.1V/1V
• Accuracy: ±(0.8%+5)

Function: DC Current

• Range: 60μA/60mA/600mA/10A
• Resolution: 0.01μA/0.01mA/0.1mA/0.01A
• Acccuracy: ±(1.2%+3)

Function: AC Current

• Range: 60mA/600mA/10A
• Resolution: 0.01mA/0.1mA/0.01A
• Accuracy: ±(1.5%+3)

Function: Resistance

• Range:

• Resolution:

• Accuracy:

Function: Capacitance

• Range:

• Resolution:

• Accuracy:

Function: Frequency

• Range:

• Resolution:

• Accuracy:

Function: Duty cycle

• Range: 1~99%
• Resolution: 0.1%
• Accuracy: ±(3.0%+3)
• Diode measurement: forward DC current 2.5mA, reverse DC voltage 3.0V
• Continuity measurement: <30Ω
• Power: 2x1.5V AA batteries
• Dimension (LxWxH): 188ˣ88ˣ50 mm
• Weight: 424 g

Features:

• Jack indicator light: jacks flash green to indicate the corresponding jacks for test leads

• NCV detection and judge the strength by light and buzzer

• Self-calibration when power on to ensure accuracy

• LIVE firewire recognition

• Double color backlight (orange backlight prompts high voltage or current: the orange backlight automatically lights up when voltage is higher than 80V or the current is higher than 1A)

• Large range capacitance meter 1 00mF

• True RMS measurement

• Battery test function

• Max/Min mode

• Data hold

• Low battery indication

• Auto power off

• Safety rating: CAT Ill 1000V, CAT IV 600V

Standard Delivery:

• Main Unit: 1Pc
• Test Lead: 2Pcs
• Battery AA: 2Pcs
