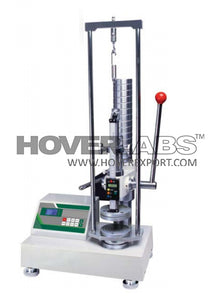

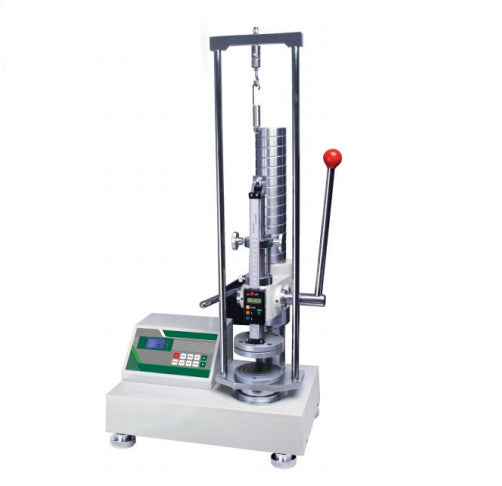

Digital Spring Tester (Model No. HVO-ISF-S1000)

Digital Spring Tester

Specification:

• Maximum Load: 1000N
• Resolution: 0.2N
• Range of Digital Scale: 150mm
• Resolution of Digital Scale: 0.01mm
• Disk Diameter: Ø108mm
• Maximum free length of spring: 200mm
• Measuring range of force: 5%~100% (maximum load)
• Accuracy of force: ±1% (maximum load)

• Data output: RS232

• Power supply: 220V, 50/60Hz
• Dimension: 300x235x620mm
• Weight: 20.8kg

Features:

• Peak hold and automatic release function

• Set upper and lower limits, red and green indicator and buzzer alarm
• Automatic conversion of three units: N, kgf, lbf
• Built in printer
• Automatic power off
