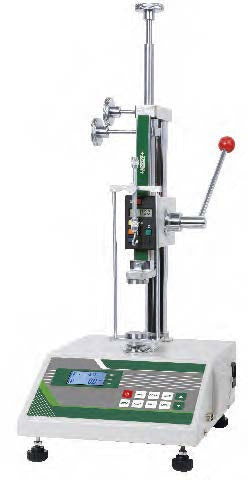

Digital Spring Tester (Model No. HVO-ISF-S300)

Digital Spring Tester (Model No. HVO-ISF-S300)

HOVERLABS

  • Rs. 185,529.00
8

Digital Spring Tester

Specification:

  • Maximum Load: 300N
  • Resolution: 0.1N
  • Range of Digital Scale: 95mm
  • Resolution of Digital Scale: 0.01mm
  • Disk Diameter: Ø49mm
  • Maximum free length of spring: 95mm
  • Measuring range of force: 5%~100% (maximum load)
  • Accuracy of force: ±1% (maximum load)
  • Data output: RS232

  • Power supply: 220V, 50/60Hz
  • Dimension: 300x235x620mm
  • Weight: 19.1kg

Features:

  • Peak hold and automatic release function
  • Set upper and lower limits, red and green indicator and buzzer alarm
  • Automatic conversion of three units: N, kgf, lbf
  • Built in printer
  • Automatic power off

 Standard Delivery

  • Main Unit: 1Pc
