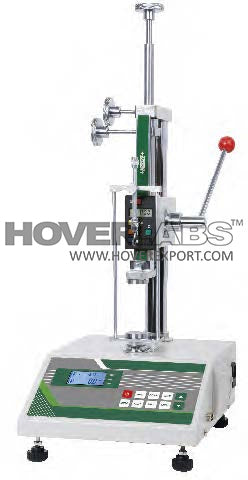

Digital Spring Tester (Model No. HVO-ISF-S20)

Digital Spring Tester (Model No. HVO-ISF-S20)


  • Rs. 185,336.00

Digital Spring Tester


  • Maximum Load: 20N
  • Resolution: 0.002N
  • Range of Digital Scale: 65mm
  • Resolution of Digital Scale: 0.01mm
  • Disk Diameter: Ø30mm
  • Maximum free length of spring: 65mm
  • Measuring range of force: 5%~100% (maximum load)
  • Accuracy of force: ±1% (maximum load)
  • Data output: RS232

  • Power supply: 220V, 50/60Hz
  • Dimension: 300x235x600mm
  • Weight: 13.2kg


  • Peak hold and automatic release function
  • Set upper and lower limits, red and green indicator and buzzer alarm
  • Automatic conversion of three units: N, kgf, lbf
  • Built in printer
  • Automatic power off

 Standard Delivery

  • Main Unit: 1Pc
