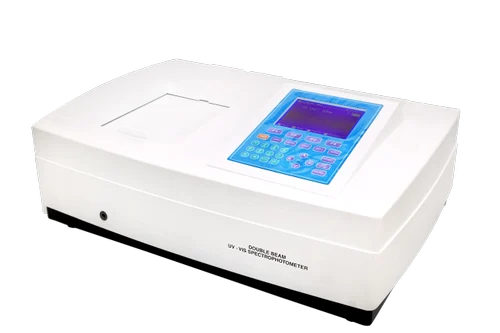

Double Beam Microprocessor UV-VIS Spectrophotometer (Variable Bandwidth & 8 Cell Holder) (Model No: HVO-2204)

Double Beam Microprocessor UV-VIS Spectrophotometer (Variable Bandwidth & 8 Cell Holder)

Advance circuit measurement and control system make the instrument of high reliability and low noise. Range 190-1100 nm, fully automatic operations, automatic 8 cell changer & variable Bandwidth, automatic wavelength calibration & wave
length scan, automatic peak picking & spectrum display. Large screen with graphic display. Spectrum and data can be printed out by printer and sent to computer via USB port. SOFTWARE INCLUDED

TECHNICAL SPECIFICATIONS:

• FUNCTION: Basic, Kinetics, Wavelength Quantitative, Scan, DNN Protein Multi Wave
• Wavelength Range: 190-1100nm
• Spectral Bandwidth: 0.5/1/1.5/2/4/5nm Variable
• Optical System: Double Beam, Grating 1200  lines/mm
• Wavelength Accuracy: ±0.1nm
• Wavelength Repeatability: ≤0.1nm
• Scanning Speed: HI, Med & low, Max. 3600nm/min
• Photometric Range:

• Photometric Accuracy: ±03%T or ± 0.002A/h @1A
• Stray Light: <0.03% @ 220 & 360nm
• Stability: ±0.001A/h @ 500nm
• Display: 5 Inches 320 x 240 Dots Graphical LCD
• Baseline Flatness: ±0.001A/h (200-1000nm)
• Sample Compartment:  8Cell with automatic cell charger -10mm path length
• Light Source: Halogen & Deuterium Lamps (Pre-Aligned)
• Printer interface: Parallel port for Dot Matrix
• PC Connectivity: USB Port for PC Connectivity
• Power: 230 V ± 10% AC, 50 Hz
• Dimensions: Instrument 760x550x240mm (Approx.)
• Weight: Instrument 20.0 Kg. (Approx.)

SALIENT FEATURES:

• Double Beam Optics
• 320 x 240 Dots Graphical LCD
• Auto Wavelength Setting at 0.1 nm interval.
• On-screen Standard and Kinetic Curve Display
• Tungsten/Deuterium can be turned ON/OFF Individually to extend lifetime
• Application Software provides complete control of this instrument from a computer through the built-in USB control Port
• Basic, WL Scan, Multi-Wavelength, Kinetic, Quantitative, DNA/Proteinmodes
• pre-aligned design makes it convenient to change Lamps.
• 8-Position Auto Cell Changer of 10 mm Path- length provided.
