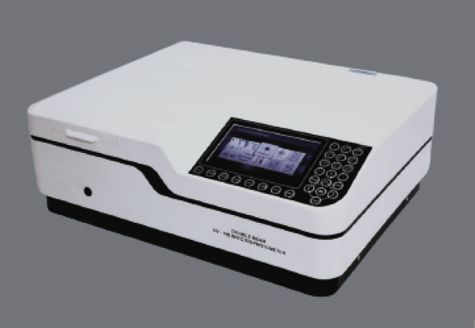

Double Beam UV-VIS Spectrophotometer (Model No. HV-2201)

Salient Features :

• Double Beam Optics
• 7 Inches TFT Color Screen
• Auto Wavelength Setting
• On-screen Standard and Kinetic Curve Display
• Tungsten/Deuterium Lamp can be turned ON/OFF Individually to Extend Lifetime
• Application Software provides complete control of the instrument from a computer through the built-in USB Port.
• Basic, WL Scan, Multi-Wavelength, Kinetic, Quantitative, DNN Protein modes
• Pre-aligned design makes it convenient to change Lamps
• Large Sample Compartment can accommodate 5-100 mm path-length cuvettes with optional holders.

Technical Specifications :

• Function : Basic, Wavelength Scan, Multi Wavelength, Kinetics, Quantitative, DNN Protein.
• Wavelength Range : 190 -1100 nm
• Spectral Bandwidth : 1.0 nm
• Optical System : Double Beam, Grating 1200 lines/mm
• Wavelength Accuracy : ± 0.1 nm
• Wavelength Repeatability : ± 0.1 nm
• Scanning Speed : HI, MED & LOW, MAX. 3600 nm/min
• Photometric Accuracy : ±0.3 %T or ± 0.002 Nh @1A

• Photometric Range :     %T        : 0-200%

                                                 Abs      : -0.3 to 3A

                                                Conc.    : 0-9999 C

• Stray Light : < 0.03 %T@ 220 nm & 360 nm
• Stability : ± 0.001 Nh @ 500 nm
• Display : 7 Inches TFT Color Screen
• Baseline Flatness : ± 0.001Nh (200 - 1000 nm)
• Sample Compartment : 2 cell holder 10 mm path- length. (50 mm & 100 mm path-length optional at extra cost)
• Light Source : Halogen & Deuterium Lamps (Pre-Aligned)
• Output Ports : USB DRIVE, USB HOST & RS232
• Power : 230 V ± 10% AC, 50 Hz
• Dimensions (L x B x H) : Instrument : : 810 x 660 x 390 mm (Approx.)

Standard Accessories :

• Quartz Cuvettes - A Set of 2
• Glass Cuvettes - A Set of 4
• Instruction Manual
• Software Manual
• Software CD
• USB Data Cable for PC Connectivity
• Mains Lead
• Dust Cover
