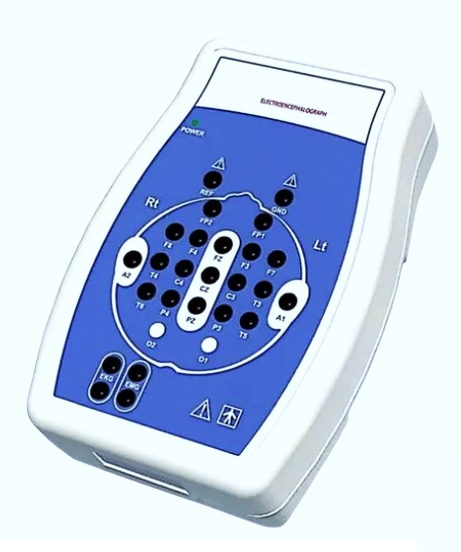

Electroencephalograph (MX 32 Channel) (Model No. HV-EEG-864)

Electroencephalograph (EEG Machine) (MX 32 Channel)

Features:

• Compact and light weight
• USB powered with plug-and-play facility
• Suitable for use in ICU, OT, Bedside recording or at Patient's Residence
• Artifact free recording in any environment
• Reports can be e-mailed or transferred across a network

• 32 channel full band simultaneous acquisition of raw data
• Data transmission through high speed USB 2.0
• Simultaneous data acquisition and analysis of same patient
• Unlimited online and offline montage and filter reformatting
• User programmable acquisition and photic sequences protocols
• Event marking with review and printing options
• Automatic paging facility for quick review and analysis
• Compressed Spectral Array (CSA) and Density Spectral Array (DSA)
• LED based photic stimulator reduces acoustic electrical interference
• Brain mapping color coding as per international standards
• User configurable multiple display and report format
• Online true AC Impedance check which displays numeric values of all electrode impedances
• Compatible with Laptop and PC
• Online or offline data transfer through Internet/ Intranet
• EEG synchronous digital video capabilities make the exams more precise (optional)

Technical Specifications:

EEG input channels                            24
EKG input channel                             1 (bipolar)
Configurable input channels             4 (bipolar)
DC/External transducer inputs          3
Total Inputs                                       32

Low Filters : 0.1, 0.3, 0.5, 1, 3, 5 Hz and user selectable (0-7 Hz), single Pole
High Filters : 15, 35, 70 and user selectable (10-99), single Pole
Notch : Off, 50 /60 Hz
Muscle rejection : On I Off, 30 Hz double Pole
Sensitivity : 1-1000 μV / mm and one user selectable value
A/D Conversion : 16 bit in hardware    Sampling Rate : 1024 Hz
Storage Rate : 256Hz
Resolution : 0.153μV
Dynamic Range : 10mVP-P
CMRR : > 100 dB(0.1-100Hz)
Noise Level : < 0.3μVRMS
Input impedance : > 10 Mohm (0.1-1O OHz)
Sensitivity/ LF/ HF/ Notch/ Muscle Rejection/ Montage implemented in software only for display/ printouts.



General
Connectivity to host PC : High speed USB
Export formats : PDF, MS Word, MS Excel
Safety : 1.5 KV isolation
Dimension : 210X150X56.5 mm
Weight : 500 gm approx.

Power Supply
Power Supply Operation : USB powered
Power On indication : LED
