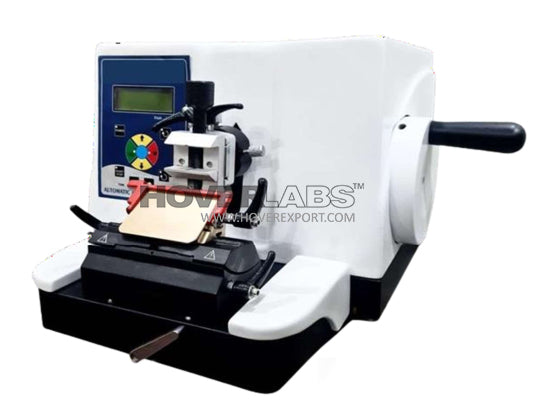

Fully Automatic Microtome (Model: HV-17-FAM)

Fully Automatic Microtome (Model: HV-17-FAM)

Technical Specification: -

· Automatic Microtome has stepper motor driven specimen feed and vertical and Horizontal cross roller Bearing mechanism to ensure accurate reproducibility of specimen thickness

· Section thickness selection from 0.5μm to 100 μm with following setting range 0.5μm -5μm in 0.5μm increment and 5μm-20μm in 1 μm increment 20μm -60μmin 5μm increment and 60μm-100μm in 10 μm increment

· Trimming setting from 1μm to 600μm or more with step trim function and 3 retractions setting at 5 µm-100 μm in 5µm increments and user can turn off

· motorized slow forward and backward coarse feed speed at 300μm/s and fast forward speed at 800 μm/s & fast backward speed at 1800 μm/s and sectioning speed of 00 to 420 mm/sec

· User selectable memory functions fast homing in less than 15 sec to increase efficiency & throughout by rapid specimen exchange while trimming or microtoming

· Specimen horizontal feed of Approx 23 mm to 25mm via stepper motor and vertical stroke length of 70 mm with Vibration Free Mechanism for trimming & sectioning

· Sectioning modes Single, Continuous, Step & rocking mode with retraction function. Modes speed to be controlled by nob. On external control panel in cutting window for better efficiency

· Able to work with external foot switch optionally for automatic operation

· Automatic Microtome Hand wheel with gravitational force compensation system is rotating the hand wheel extremely smooth, light & avoids vibrations while sectioning or microtoming further facilitate convenient & safe specimen clamp exchange without requiring modification of hand wheel

· Electronic braking for safe blades specimen handling so that will automatically hold object head after motorized sectioning in upper position activated on separate control unit

· standard silent specimen retraction for working in a silent environment to improve ability & concentration

Internal Code: - KD.4109.260521
