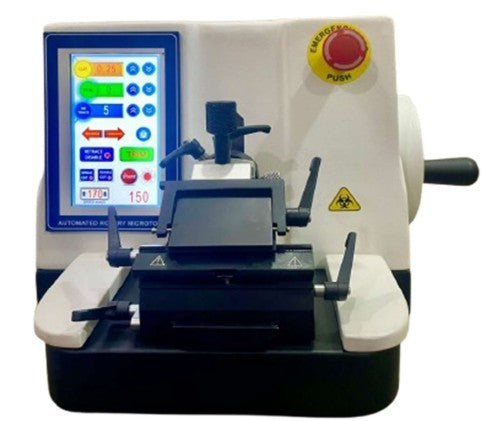

Fully Automatic Rotary Microtome (Model: HV-FM-177)

Fully Automatic Rotary Microtome (Model: HV-FM-177)

Technical Specifications:

·         Mechanism: Motorized feed mechanism with electronic and manual cutting options

·          No of electronic cutting option:  3

·          Length of vertical stroke in mm:  60mm for small standard clamp

·          Horizontal specimen feed in mm:  30

·          Specimen holder design:  standard specimen clamp, universal cassette clamp

·          Type of disposable blade: Both high profile and low profile

·          Number of packets of disposable blades (50 blades in 1 packet):  2 pkt

·         Emergency brake for user safety: Yes, for fully automatic microtome

·         Motorized Coarse feed:  adjustable from 0 – 300 m, free programmable, in two speeds :300 mm/sec & 900 mm/sec

·          Cutting speed: Steplessly adjustable from 3 – 300 mm/sec or in two speeds :300 mm/sec & 900 mm/sec WITH Single, Continuous, programmable, manual SECTIONING STROKE in case of fully automatic microtome in case of fully automatic microtome

·         Specimen Retraction: "In Manual Sectioning Mode: 5 - 100 µm (in 5 µm increments); can be turned off, In Motorized Sectioning Mode: Speed-Dependent; can be turned off"

INTERNAL CODE: - KD.2483.25087
