Product details

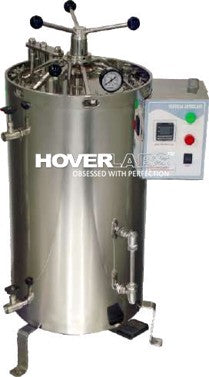

Fully Automatic VERTICAL AUTOCLAVE (Model: HVO-105)
Technical Specification: -
- The outer chamber is made of heavy gauge Stainless Steel Sheet duly polished.
- The inner chamber is made of thick 304 Grade Stainless Steel Sheet.
- Lid is made of thick machined high-grade Stainless-Steel plate.
- The unit has Radial Locking arrangement made of high-grade SS duly polished with paddle lifting mechanism.
- Unit is provided with Spring Loaded Safety Valve, Pressure Gauge, Pressure
- Release Valve, Water Level Indicator & Drain Valve.
- Unit is hydraulically tested to withstand upto 40 psi pressure.
- Molded joint-less Silicon Rubber Gasket is provided for leak proofing.
- The unit is electrically heated by flange type/immersion type heaters.
- Supplied with Control Box, fitted with Mains & Heating Indicators,
ON / OFF Switch, Cord & Plug to work on 220/230V, 50Hz, AC supply.
Microprocessor based Controller with user programmable time and temp; Low water level alarm and cut off for safety of heaters; Sensor open alarm and display; End of cycle buzzer to alert the user and auto reset;
Solenoid Valve for Automatic Purging and Exhaust (user settable).
- INNER DIMENSIONS (DIA X DEPTH) - 450 x 600mm 18“x 24”
- CAPACITY (Approx.) - 95 ltrs.
- HEATER LOAD - 4.0 KW
Internal Code: - KD. 2967.260131
