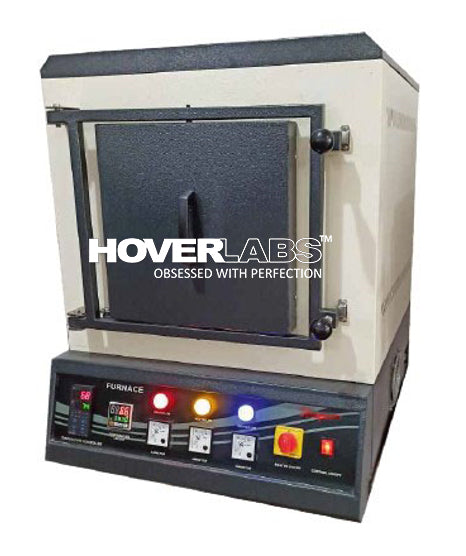

FURNACE - HIGH TEMPERATURE 1300 0C (Model: HV-09)

FURNACE - HIGH TEMPERATURE 1300 0C (Model: HV-09)

Technical Specifications:

- Rugged and durable construction.

- Outer casing is made up of thick mild steel with duly powder coated

- Maximum Temp. Range :13000C

- Continuous working Temp.: 12500C

- Body Construction:  Ms fabricated with duly powder coated, dual body structure. Furnace is mounted on a heavy-duty stand.

- Door: Leak proof Swing aside type door with safety switch

- Heating Rate:  Up to 100C/Min

- Temperature Controller: Digital Temperature Programmable PID controller. Single Programme with 30 segments

- Temperature Accuracy:  +/- 30C

- Temperature Uniformity: +/- 150C

- Thyristor Unit: SCR unit will be Provided with soft starting driver

Ammeters Digital Ammeters to indicate load current

 Indication LED indicators

- Multilayer insulation with vacuum formed ceramic fibre board and refractory bricks with low thermal mass.

- Parallel guided swing aside door design for providing ease of operation.

- Furnace design with powerful heating elements for providing fast heating rate.

- Fast heat up and cool down rates.

- Better Temperature Uniformity

- Temperature Controller with PID Controllers.

- Power control with Thyristor units for very precise temperature Control, wear-free and noiseless.

- High mechanical durability, short heating cycle and low power consumption.

- Furnace is designed with powerful heating elements, i.e, SiC on all sides of the chamber providing fast heating rate.

Internal Code: - KD.2862.251226
