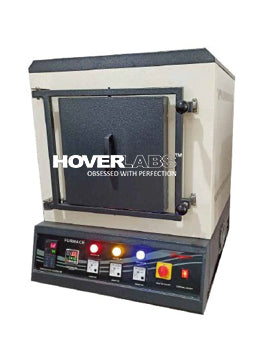

FURNACE - HIGH TEMPERATURE 1300 0C (Model: HV-11)
FURNACE - HIGH TEMPERATURE 1300 0C (Model: HV-11)
Couldn't load pickup availability
FURNACE - HIGH TEMPERATURE 1300 0C (Model: HV-11)
Technical Specification: -
Body Construction Ms fabricated with duly powder coated, dual body structure. Furnace is mounted on a heavy-duty stand Door Leak proof Swing aside type door with safety switch Insulation Low energy consumption vacuum formed fiber boards & refractory bricks, Dual wall insulation, Hot wall insulation will be 14250C HD grade refractory bricks Heating Rate Up to 100C/Min Heating element SiC, Heating from two sides for better uniformity Skin Temperature Less than 600C at 12500C Thermocouple (DUAL) R type with alumina sheath (Main Controller 1 no. & Safety Controller 1 no.)
- Maximum Temp. Range: 1300 c
- Continuous working Temp. 1250 c
- Cap. Ltr: 6.75
- Internal size H x W x D in Cm: 15 x 15 x 30
- Rating KW, Supply & Heater: 3 Phase, 415 Volts, 4 Wire, 5.8 KW
Internal Code: - KD. 2966.260131
