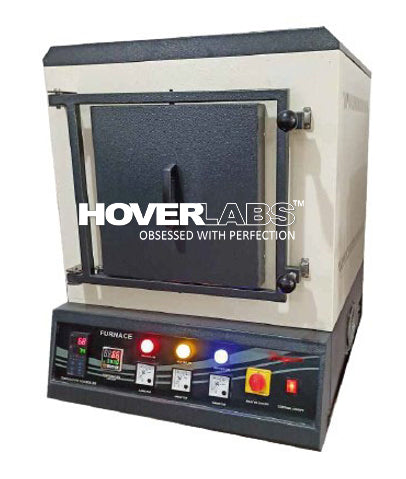

FURNACE - HIGH TEMPERATURE 1300 0C (Model: HV-61 HTF)

FURNACE - HIGH TEMPERATURE 1300 0C (Model: HV-61 HTF)

Furnaces for higher temperature applications with short heat up time & resistance to thermal shock. Designed with highest standards for quality for efficient high-temperature use with minimal maintenance. Silicon Carbide element with easy assembly. These furnaces are Ideal for rapid cycling over extended periods.

Technical Specification: -

Maximum Temp. Range :1300 C

Continuous working Temp.: 1250 C

Body Construction:  Ms fabricated with duly powder coated, dual body structure. Furnace is mounted on a heavy-duty stand.

Door: Leak proof Swing aside type door with safety switch

Heating Rate:  Up to 100C/Min

Temperature Controller: Digital Temperature Programmable PID controller. Single Programme with 30 segments

Temperature Accuracy:  +/- 30C

Temperature Uniformity: +/- 150C

Thyristor Unit: SCR unit will be Provided with soft starting driver

Ammeters:  Digital Ammeters to indicate load current

 Indication: LED indicators

Internal Code: - KD.2894.260106
