Gear Pump Test RIG
Description

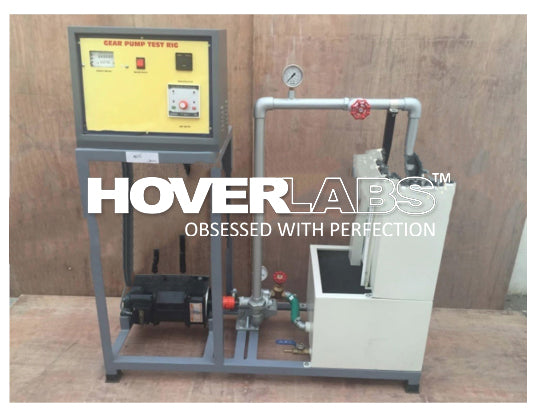

The setup is designed to study the performance of gear pump.
Set up consists of a gear pump having a pair of meshed gears coupled with electrical motor, supply tank, measuring tank & pipe fittings for closed loop oil circulation. Pressure and Vacuum gauges are connected on delivery and suction side of pump for the purpose of measurement.
The flow rate of water is measured using measuring tank and stopwatch provided.
Experiments
- To determine overall efficiency and pump efficiency of the gear pump.
- To plot Head vs. Discharge, Pump efficiency vs. Discharge
Features
- Closed loop circulation
- Compact & stand alone set up
- Stainless Steel tanks and wetted parts
- Superb Painted structure
- Simple to operate & maintain
Utilities Required
- Electric supply: 230+/- 10VAC,50Hz,1 ϕ
- Oil supply Oil @ 30 liters
- Floor Area with drain facility
Technical Specification
|
Pump |
Gear pump with pair of meshed gears Capacity 1 HP, Speed 1500 RPM (max.), Head 5 kg/cm2 (max.) |
|
Drive |
HM 04 DC: DC motor with DC drive along with non-contact type digital RPM indicator |
|
Supply Tank |
Capacity 35 Ltrs. MOC SS |
|
Measuring Tank |
Capacity 20 Ltrs. MOC SS fitted with Piezometer Tube & scale |
|
Piping |
GI / PVC |
|
Stopwatch |
Electronic |
|
Pressure Measuring Instruments |
Pressure Gauge: Bourdon type. Vacuum Gauge: Bourdon type |
|
Control Panel |
With required electrical instrumentation RPM Indicator with Proximity Sensor Electronic Energy Meter On /Off switch Main indicator etc. |
