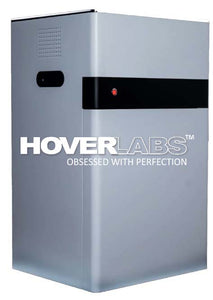

Gel Documentation and Analysis System (Model No. HVO-GD950)
Gel Documentation and Analysis System
Features:
- Darkroom
1.1 No light leakage Darkroom
1.2 External size:44x40x72cm
- CCD Camera
2.1 Scientific CCD
2.2 Resolution:5 Megapixels,2592*1944
2.3 A/D:16bit (65536 Grey scales)
2.4 High QE: 75%
2.5 Read noise: 5.1e-RMS
2.6 SNR:70.1db
2.7 Sensitivity: Lower than 10pg EB-Stained DNA
- Lens
3.1 Imported Computer 2/3 Inch, F1.2 Motorized Lens
3.2 Numeric Focus and Aperture
- Filter (Standard)
590nm for gel doc as standard
- Epi-white light
White LED * 2
- Transilluminator
6.1 UV transmission as standard: Wavelength 302nm, Area: 21x26cm
6.2 White light LED as optional, Area:21x19cm
6.2 Blue LED as optional: Area:21x19cm
- UV protection shield as standard
- Gel doc Software
- Analysis Software
- Application (included as standard)
10.1 DNA/RNA Gel inspection: Ethidium Bromide,
SybrTM Gold, Gel Red, GelStarTM;
10.2 Protein Gel Inspection: SyproTMOrange
