Product details

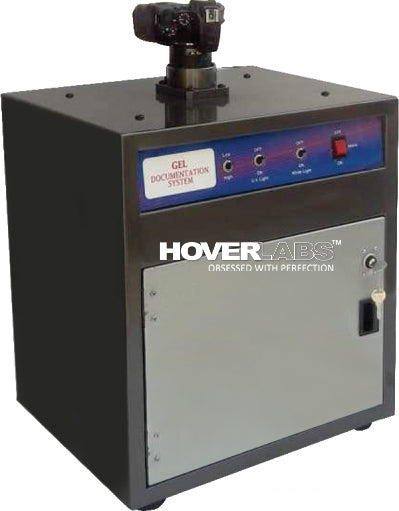

Gel Documentation System (Model: HVL: 02)
Technical Specification: -
Excellent optics coupled to a high-quality camera, the gel. LUMINAX gel documentation system, is a high performance and reliable fluorescent and colorimeter bio-imaging system. Featuring 18-megapixel digital camera, the camera connects to a PC through a USB and can be controlled from the PC. The light-tight cabinet has a UV safety switch and a roll-out transilluminator. A choice of illumination options with UV trans/epilighting, wave length-specific LEDs and more, adds to the versatility of the system. Ultraviolet transilluminator is provide in 312 & 365 nm dual ranges. Filter size of tranilluminator is 210x260nm (which is extra-large). Epi white light illumination from above is standard. Optionally, ultraviolet epi-illuminator in a variety of wavelengths can also be provided. The dark room cabinet has features for safety switch that switches off the UV lights as soon as the door is opened. The gel doc system is perfect for diagnostic labs, Biotech start-ups for HLA typing facilities, DNA and protein research and academic labs.
Camera Features:
- 18 Megapixels Digital SLR Camera (DSLR) with Fixed screen.
- 8 GB Memory Card storage and 24 Bit RGB.
- Zoom Lense 18-55 mm and another Zoom Lenses 55-250mm.
- EtBr 590 Filter.
- 302nm nm UV.
- Operates camera directly and also via P.C. (i.e, Live on computer).
- 7.7cm/3 LCD Hybrid CMOS Auto Focus.
- Wireless Remote-control shooting of pictures directly from camera also Image storing card.
- Easy to use, Low cost, yet high-quality images.
- High Grade auto focus DSLR Camera that can be Mounted conveniently.
- Easy access to Transilluminator.
- Options: - Fixed LCD Screen

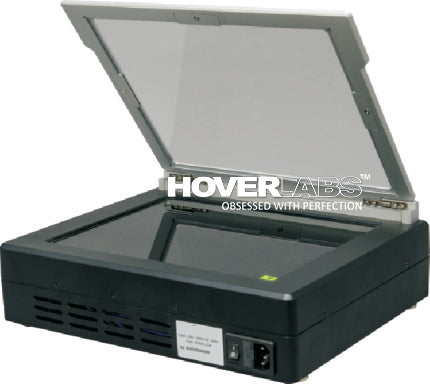

U.V. Gel Transilluminator:
Parameters Item: U.V. Transilluminator Smart Look Very Accurate Research work
- Intensity: 312
- No. of U.V. Tubes: 8
- Wattage: 8 Watts
- Detection Limit: 0.01 ngm. of stained DNA
- Viewing Area: 210 x 260 mm
- Filter: Quartz Filter
- Body: Aluminium Pressure die body Furnished in black powder coating
- UV protection Shiled: Yes
Advantages:
- Easy to use, Low cost, yet high-quality images.
- High Grade auto focus DSLR Camera that can be Mounted conveniently.
- Easy access to Transilluminator.
- Transilluminator can come out as fitted in drawer
Internal Code: - KD.4087.260512
