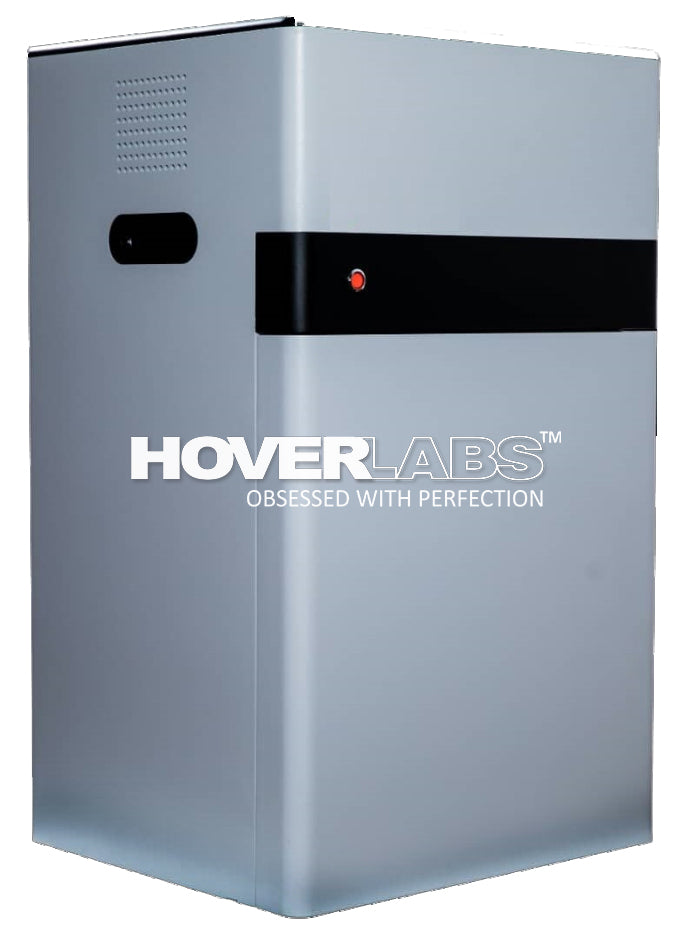

Gel Documentation Systems (Tab Model) (MODEL NO. HVL- 1520)

Gel Documentation Systems (Tab Model)

(MODEL NO. HVL- 1520)

Technical Specification: -

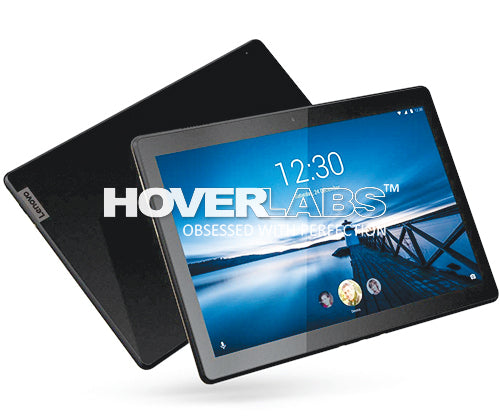

Touch Screen 8.7” Tablet with 128GB storage, DNA/RNA Gel inspection, Protein Gel Inspection, UV transmission Wavelength 302nm, Area: 21x26cm, provided with UV protection shield, Gel doc software, Analysis software, CCD Camera : Scientific CCD, Resolution:20 Megapixels,4800*4440, A/D:16bit (65536 Grey scales), High QE: 75%, Read noise: 3.1e-RMS, SNR:75.2 db, Sensitivity: Lower than 5pg EB Stained DNA, filter standard:- 590nm for gel doc as standard, External size:44x40x72cm.

Technical Specification: -

- Darkroom- No light leakage Darkroom,External size:44x40x72cm

• CCD Camera - Scientific CCD, Resolution:20 Megapixels,4800*4440

               -A/D:16bit (65536 Grey scales)

               -High QE: 75%

               -Read noise: 3.1e- RMS

               -SNR:75.2 db

               -Sensitivity: Lower than 5pg EB-Stained DNA

 - Lens-Imported Computer 2/3 Inch, F1.2 Motorized Lens

 - Numeric Focus and Aperture

 - Filter (Standard)-590nm for gel doc as standard

  - Epi- white light-White LED * 2

 - Transilluminator- UV transmission as standard: Wavelength 302nm, Area: 21x26cm White light LED as optional, Area:21x19cm

- Blue LED as optional: Area:21x19cm

- Application- included as standard

- DNA/RNA Gel inspection- Ethidium Bromide, SybrTM Gold, Gel Red, GelStar TM;

- Protein Gel Inspection- Sypro TM Orange

INTERNAL CODE: - KD.
