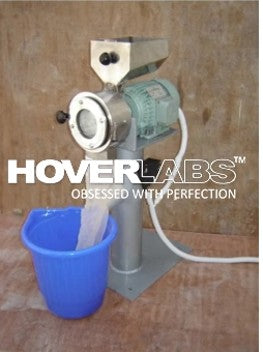

Hammer Mill (Model: HVO-MO-01)

Hammer Mill (Model: HVO-MO-01)

Description:

Hammer Mill consists of Pivoted hammers, mounted on a horizontal shaft. Crushing takes place by impact between the hammers and anvil plate. The hammers delivers heavy blows to the feed material while it is in suspension, driving it against an anvil plate until it is fine enough to pass through the opening of the mesh fitted in the bottom of the Mill.

Technical Specification:

- Hammer Mill Housing: Material SS, Dia 145mm, Depth 75mm

- Feed Size: 6mm Approx

- Product Size: 60-150 Mesh Approx.

- Drive: 2 H.P. standard Make motor

- Starter: 2 H.P. standard Make motor

INTERNAL CODE: - KD. 2490-R.25811
