Hammer Mill
Description
Hammer Mill consists of Pivoted hammers, mounted on a horizontal shaft. Crushing takes place by impact between the hammers and anvil plate. The hammers delivers heavy blows to the feed material while it is in suspension, driving it against an anvil plate until it is fine enough to pass through the opening of the mesh fitted in the bottom of the Mill.

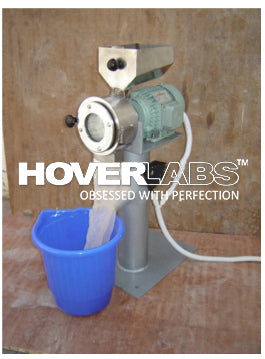

The present Hammer Mill has a sturdy housing which contains 4 Nos. of T shaped hammers pivoted to a disc which is fitted with the shaft of the mill turning about the horizontal axis. The shaft is directly coupled to a motor. The housing contains a semi-circular teethed liner (or anvil plate) on the top of it. A glass window to see through in the Mill is fixed on the front cover, which can be opened to change the sieve. Different mesh sizes are provided to get different product size. A hopper with feed opening and adjustment is provided in the Mill. The crushed material is collected in a receiver provided in the set-up. This Mill can accept a feed size of 6.5mm or less.
Experiments
- To study the operation of a Hammer Mill
Features
- Superb Painted structure
- Simple to operate & maintain
Utilities Required
- Feed Product
- 2 kW. 3Ø supply, 440 V AC
- Set of sieves with sieve shaker for analysis
- Floor Area: 0.5 x 0.5m
Technical Specification
|
Hammer Mill Housing |
Material SS, Dia 145mm, Depth 75mm |
|
Feed Size |
6mm Approx |
|
Product Size |
60-150 Mesh Approx. |
|
Hammers |
Material SS, Size 55 mm x 15 mm |
|
Anvil Plate |
Material SS, Teethed Semi-Circular |
|
Hopper |
Material SS, with discharge control arrangement |
|
Mesh |
Material SS of different size |
|
Discharge Chute |
Suitable size |
|
Drive |
2 H.P. standard Make motor |
|
Product receiver |
Material SS of suitable size. |
|
Starter |
2 H.P. standard Make motor |
|
Control Panel |
On/off switches, mains indicator etc |
*Painted rigid MS structure is provided to support all parts.
