Product details

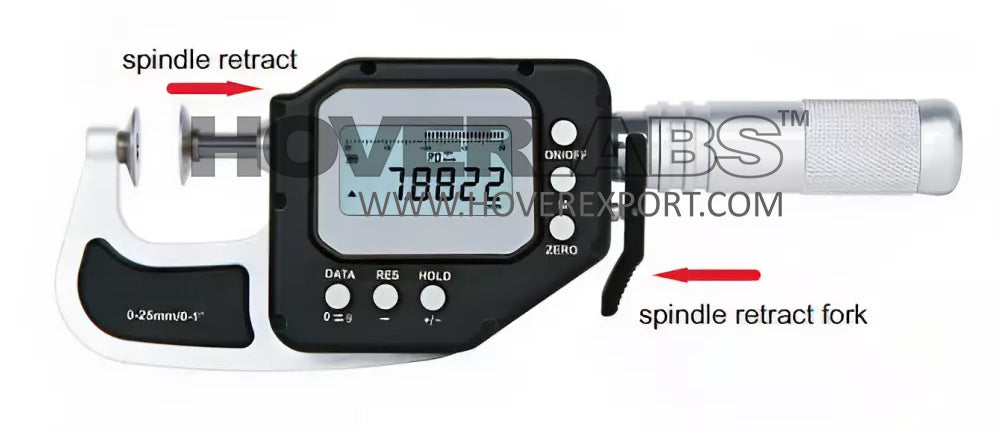

High Precision Digital Disk Micrometer/Snap Gages (With data interface)
Specification:
- Measure root tangent length of gear
- Absolute encoder, the original data remains after power off
-
Adjustable resolution:
0.0002mm/0.00001"
0.001 mm/0.00005"
0.01 mm/0.0005"
- One turn of sleeve makes 5mm spindle feed
- Measurement accuracy is not affected by the use of sleeve
- Press the fork, the spindle retracts 3mm
- Linear ball bearings for ten million times use
- Carbide spindle and anvil
- Measuring force 7-10 N
Customizable measuring force range 2-12N
Attention: small measuring force will reduce the dustproof and waterproof level - Button function: data output, tolerance, data preset, data hold, measuring direction change, max./min./TIR, power off time, on/off, zero, mm/inch, adjust resolution
- Supplied with gage blocks for zero setting
- Power: rechargeable battery, for 24 hours continuous working
-
Optional accessory:
wireless transmitter
data output cable (keyboard format),
