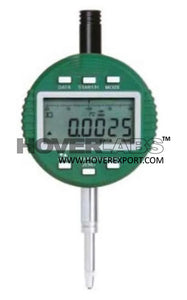

High Precision Digital Indicators (Model No. HVO-DI-2133-10)
High Precision Digital Indicators
Specification:
- Range: 12.7mm/0.5"
- Resolution: 01µm/0.000005"
- Accuracy: 3µm
- Hysteresis: 1.5µm
Standard precision
- Carbide probe
- Adjustable Resolution:
0.0005mm/0.00002"
0.001 mm/0.00005"
0.01 mm/0.0005"
Features:
- Flat back
- Linear ball bearings for ten million times use
- Absolutely encoder, the original data remains after power off
- Reading in digital and analog
- Data output, with flat back
- Button function: data output, tolerance, data preset, data hold, measuring direction change, max./min./TIR, power off time, on/off, mm/inch, adjust resolution
- Power: rechargeable battery, for 24 hours continuous working
-
Optional Accessory: Contact points,
wireless transmitter, code 7315-60
data output cable (keyboard format), code 7302-60,
data output cable (serial port format), code 7305-G60,
(cable length 3m, optional cable length maximum 15m; RS232 protocol, optional RS485 protocol)
