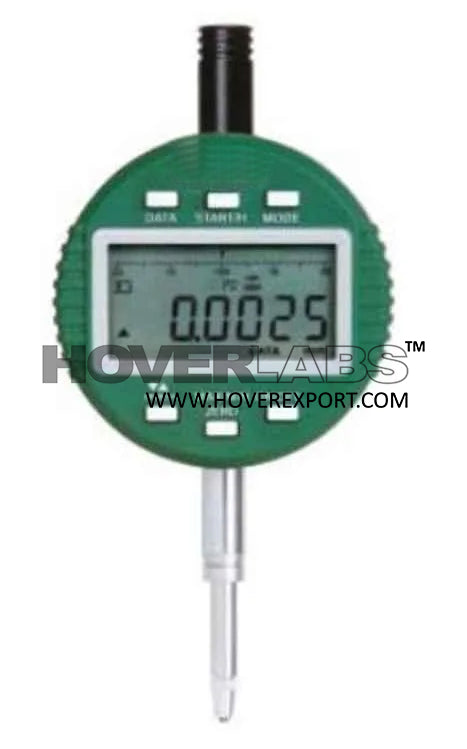

High Precision Digital Indicators (Model No. HVO-DI-2133-101)

High Precision Digital Indicators

Specification:

• Range: 12.7mm/0.5"
• Resolution: 01µm/0.000005"
• Accuracy: 3µm
• Hysteresis: 1.5µm

High precision

• Ruby probe
• Adjustable Resolution:

Features:

• Flat back
• Linear ball bearings for ten million times use

• Absolutely encoder, the original data remains after power off

• Reading in digital and analog
• Data output, with flat back

• Button function: data output, tolerance, data preset, data hold, measuring direction change, max./min./TIR, power off time, on/off, mm/inch, adjust resolution
• Power: rechargeable battery, for 24 hours continuous working
• Optional Accessory: Contact points,
  wireless transmitter, code 7315-60
  data output cable (keyboard format), code 7302-60,
  data output cable (serial port format), code 7305-G60,
  (cable length 3m, optional cable length maximum 15m; RS232 protocol, optional RS485 protocol)
