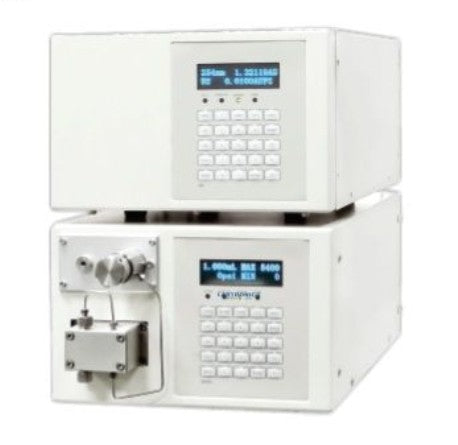

HIGH PRESSURE LIQUID CHROMATOGRAPH (HPLC)
(Model: HVL-3201)
Technical Specifications:
HPLC isocratic System with high pressure solvent delivery pump, Multi-wavelength UV Detector. Sample inject valve Rheodyne 7725i. LC Column (USA)with workstation software. Wavelength range 190-700 nm, Wavelength accuracy ±1nm, spectral bandwidth 8nm, flow cell volume 8micro liter optical length -10nm.
SPECIFICATIONS (PUMP)
Flow Range :0.0019.999 Mi/min
Delivery method: Double piston (Main & Auxiliary)
Pump head:10m1 SST/Peek analytical
Accuracy: ± 1% or 2pLimin, whichever is greater ± 1% or 1pL/min, whichever is greater (Micro)
Pmax: 6000psi
Power input:85 to 264 VAC. 47 to 63 Hz, 60 Watts
Control: Standalone mode using front panel
SPECIFICATIONS (UV DETECTOR)
Wavelength:190-700 nm
Spectral bandwidth:6 nm
Wavelength Accuracy :< ± 1 nm
Wavelength Reproducibility:< ± 0.5 nm
Flow pool volume:10 μL
Internal Code: - KD. 2655.251021
