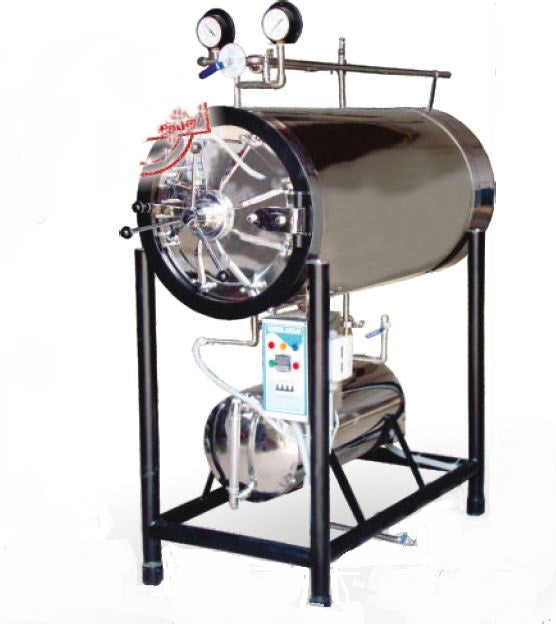

Horizontal Autoclave (Cylindrical) (Model No. HV-125-AC)
Horizontal Autoclave (Cylindrical)
- Triple walled with separate steam jacket and boiler.
- Inner chamber and steam jacket are made of heavy gauge Stainless Steel sheet with leak proof argon arc welding.
- The sterilizer has single piece door made of thick Stainless Steel plate.
- All the sterilizers are hydraulically tested to withstand pressure upto 40 psi.
- Mounted on tubular steel frame with ground leveling screwed flanges.
- The space between outer wall and steam jacket is filled with glass wool to minimize the heat losses.
Steam Generator (Boiler) :
- Made of heavy gauge Stainless Steel Sheet.
- Fitted with flanged immersion type heaters at the back.
- Also fitted with Low Water Level Cutoff Device to protect the heaters from burning out dry.
- Fitted with Water Level Indicator, Water Inlet and Outlet Valves.
Pressure Control :
The “PIEZOSTAT” (Pressure control device) is incorporated in the unit as it economies on power consumption and reduces the frequent opening of the steam release valve and thus prevents the release of steam in the room, It cuts off the power supply to heaters when the set pressure is achieved and re-energies the heating elements when pressure falls below the set point.
Safety Door :
Sterilizer has hinged self-locking single piece thick SS plate door and cannot be opened when under pressure. The self-locking device automatically disengages the piston mechanism when the sterilizer is under pressure.
Single Point Control :
Complete sterilizing cycle is controlled from one point with the help of “Three way / Multiport Valve” fitted at front top. Easily readable jacket and chamber pressure on gauges mounted on the front top. A moisture trap is fitted in the chamber discharge line to absorb the condensate automatically to prevent moistening of the subject matter to be sterilized. Automatic Vacuum breaker is provided to break vacuum in case of formation of vacuum due to steam condensation.
Switch Box :
Houses the PIEZOSTAT, Main Switch, Indicator Lamps, Relays etc. and mounted on the stand of the sterilizer for easy operation.
