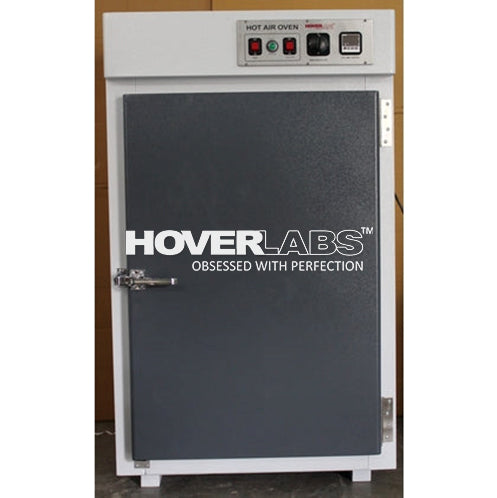

HOT AIR OVEN (Model No: -HV-MAH-101)

HOT AIR OVEN

MAKE HOVERLABS

Purpose: -

Hot Air Oven is commonly used for dry heat sterilization which is a method of controlling micro-organisms.

TECHNICAL SPECIFICATIONS: -

• Capacity: 224 Lit

• Double walled construction filled with glass wool insulation

• Temp: Ambient to 200 °C approx.

• Temp display resolution 0.1°C

• Temp accuracy ±1% of set point

• Temperature control accuracy of ± 0.5ºC at 120°C

• Preheating chamber technology providing with homogeneous temperature control

• Motor and blower for forced air circulation to maintain temp    uniformity inside chamber

• PID temp indicator cum controller with inbuilt timer Dual LED display

• RTD type PT 100 class A temp sensor having sensitivity of 0.1°C

• Inner chamber Size will be 24 W x 24 D x 24 H inches.

• External size will be 29 W x 36 D x 36 H

• Inner chamber made of SS 304 grade

• Outer chamber made of MS duly powder coated

• 1 Unit doors

• Rounded inner chamber corners for easy cleaning and reduce contamination

• Adjustable shelve arrangement at every 4” distance

• Class 2 integrated independent adjustable temperature safety device (DIN 12880) with alarm

• SS shelves 3 will be provided

• Supply complete with shelves, chord 2 meter and 16 Amp plug

• Works on 230 V, 50 Hz single phase supply
