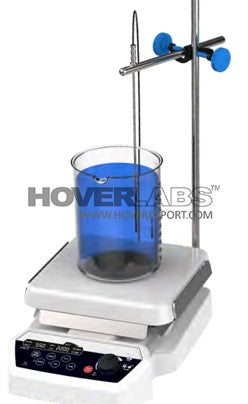

Hot Plate Magnetic Stirrer (Model: HVL-350)

Hot Plate Magnetic Stirrer (Model: HVL-350)

Technical Specifications:

- Powerful servo DC motor for constant speed delivery under varying load

- Stirring capacity up to 20 litres

-  Nano crystal full ceramic top plate ensures chemical resistivity &

constant heat transfer

-  Highly resistant and inert body, even to strong chemicals

-  Heater temperature setting from Ambient to 350°C / 550°C

- Variable speed setting from 200 to 2200 RPM in steps of 10 RPM & long timer range from 1-999 mins & infinite mode

- Microprocessor controlled hot plate stirrer with variable speed and time setting, along with last run memory function

- Auto restart mode automatically resumes stirrer operation in case of power interruption

-  Keypad lock function locks down keypad after the user has set the

parameters

-  Programmable pulse mode with run pause run feature

-  3 heating modes for rapid, gradual & accurate heating

-  Large and clear display for better readability across all parameters

- Safe temperature circuit cut up to 375°C / 575°C for greater reliability

-  Small footprint for saving valuable bench space

-  LED indication when plate temperature above 50° C

- Stirring Quantity Max.- 20 Litres

- Set-up plate material - Nano crystal full ceramic top plate

- Variable Speed- 200-2200 RPM

- Heat Temperature Range - Ambient to 350° C

- Temp Accuracy - ± 1°C

- Run Time - 1-999 mins & infinite

- Safe temperature circuit- Yes

- Digital display- Shows Speed/Time and Actual/Set temperature alternately

- Set-up plate dimensions- 180 x 180 mm

- Weight- 4.9 Kgs

- Dimensions (L x W x H)- 330 x 225 x 113 mm

- Length of stir bar- 25 mm

- Protection class - IP 21

- Voltage / Consumption- 220-240V / 1000W

Internal Code: - KD.2887.260106
