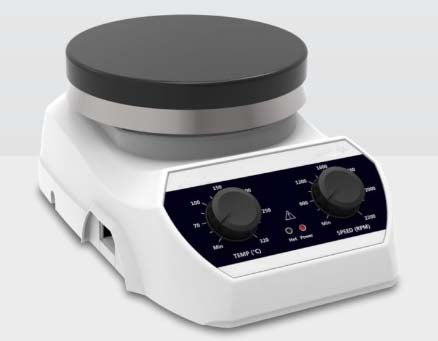

HOT PLATE MAGNETIC STIRRER Model : HVO-HP-320A

HOT PLATE MAGNETIC STIRRER

Model: HVO-HP-320A

Technical Specifications:

Power DC motor for up to 2200 RPM Operation and maintenance free long time. Easy to Operate-plug & play. Closed design for equipment protection against spillage and easy cleaning. Non slip strength rubber feet. Small footprint for saving valuable bench space. Suitable for use in hoods and cold rooms. Optional multiple reaction blocks. Preset safe temperature.

Capacity: 10litres

Set-up Plate Material: SS with Ceramic coating

Motor Type: DC Motor

Variable Speed: 500-2200 RPM

Temperature Range: Ambient +25 to 320°C (Plate temperature)

Set-up plate dimensions: 140 x 140 mm

Weight: 1.5 Kgs

Dimension (L x W x H): 248 x 156 x 104 mm

Length of stir bar: 25

Protection Class: IP 21

Voltage/ Consumption: 220V / 310W

Internal code: KD9321.240925
