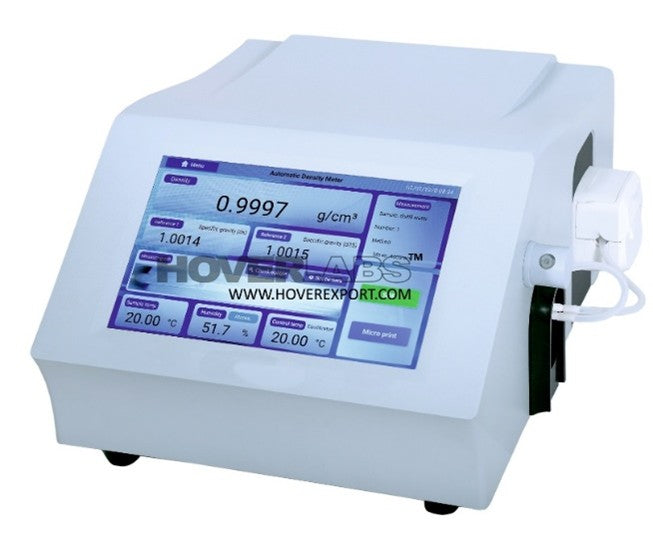

Automatic Density Meter (Model- HVL-03)

“HOVERLABS” Automatic Density Meter

(Model- HVL-03)

Salient Features:

-Automatic Density Meter function is to quickly measure the density of liquids

-Quartz glass U-Shaped Tube and photoelectric detector

-Temperature control using plenum resistors and semiconductor refrigerant 10.1" Touch screen display with an Android operating system.

-1080P high-defining camera for observing the sample injector process

-Bubble Datacom users observe and identify bubbles or impureness in the sample. Measurement results can be saved as -PDF reports and exported via USB

-Batch data collection and storage

-RS232 Serial port, USB

-Air pump for drying and cleaning

-Print results using by thermal printers

-Air pump for drying and cleaning

-Print results using by thermal printers

Technical Specifications:

- Density Measuring Range -0.0000 to 3.0000g/cm3

- Density Resolution- 0.0001g/cm3

- Density Accuracy- ±0.0005g/cm3

- Density Repeatability- ±0.0002g/cm3

- Temperature Resolution 0.01°C

- Control Temperature Range -5°C ~50°C

- Control Temperature Repeatability - ± 0.05°C

- Control Temperature Accuracy -±0.1°C

- Measurement Units- g/cm, kg/cm

- Display- 10.1" Touch screen

- Camera -1080P HD camera

- Calibration- Dry air / Distilled Wayer

- Data Storage- 128GB

- User Management NA

- Method Management- 200 groups

- Measurement Records- 2,00,000 groups

- Communication Port- RS232 Interface, USB, U stick

- Power - 120W

- Power Supply- 220V, 50/60Hz

- Dimension (LxWxH) mm - 730 x 480 x 420mm

- Net Weight - 10kg

- Gross Weight - 22kg

INTERNAL CODE: - KD.2378.25710
