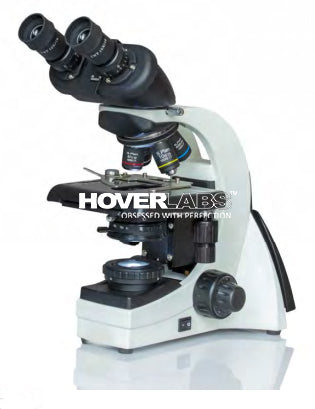

Binocular Microscope (Model: HVS-BM180)

“HOVERLABS” Binocular Microscope

(Model: HVS-BM180)

TECHNICAL SPECIFICATION:

• Single mould sturdy stands with anti-rust materials.

• Extended base with hand rests for enhanced stability and comfort.

• Viewing Body Should be 45° inclined Binocular tube, 360° rotatable

• Interpupillary distance should be adjustable 55-70mm.

• Vacuum coated Prism for better transmission and anti-fungus character.

• Focusable eyepiece with graduated scale WF 10x/18mm F.O.V., foldable eye guard, lockable, with anti-fungus coating.

• Quadruple nosepiece (Ball bearing type) with rubber grip.

• Par-Centred & Parfocal.

• Objectives Lab purpose DIN Plan Achromatic objectives 4x, 10x, 40x (spring loaded), 100x Oil (spring loaded) with anti-fungus coating.

• Mechanical stage 130x120mm or wider with co-axial drive, highly smooth on ball slides,

Stainless Steel Holder for slide 75 x 50mm movement.

• Sub-stage abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with snap-in blue filter. Rack and pinion movements on metal- guide.

• Co-axial coarse and fine focusing on ball drive system preferably both side for smooth

Movement

• Upper limit stopper to prevent breakage of slide.

• LED illumination with variable illumination control. Rechargeable Lithium Ion Battery Providing 6-8 hr of Battery Backup in case of electricity failure.

• The microscope able to illuminate on electricity when the battery is not present.

• Work on Standard Indian electrical supply.

• Provide 100 ml of lens cleaning solution. 25 ml of immersion oil and roll of lens cleaning paper and dust cover.

INTERNAL CODE: - KD. T-2347.2588
