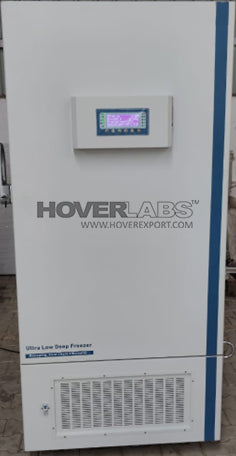

DEEP FREEZER -80°C (Model: HVS-DF450)

“HOVERLABS” DEEP FREEZER -80°C

(Model: HVS-DF450)

‘HOVERLABS’ -86°C Ultra Low Temperature is a undercounter Deep Freezer for laboratory and medical grade. This ultra-low deep freezer is equipped with high-precision temperature control, ensuring the temperature uniformity in the cabinet with a range of -40°C to -86°C. The targeted refrigeration of the deep freezer enables fast refrigeration. It is designed in human-oriented with energy saving and environmentally friendly. It can safely store laboratory research materials, pharmaceutical raw materials, and more. This medical / laboratory deep freezer is suitable for using in blood banks, health and disease prevention systems, hospitals, colleges & universities, research institutions, the electronic industry, laboratories in colleges & universities, biological engineering, military enterprise, deep-sea fishing companies, etc.

TECHNICAL SPECIFICATION:

•      Temperature Range: -86°C

•      Temperature Accuracy: 0.1°C

•      Ambient Temperature Range: +10°C to +43°C (Best Performance at +30°C)

•      Control System: Microprocessor Control, PT 100 sensor with calibration certificates traceable to national standards. Provision of access port for connectivity purpose.

•      Display: Wide 4″ LED Touch Screen Display.

•      Alarm: With a limit of -87°C  to -77°C, Deep Freezer has perfect audible and visual alarm system including Alarm for high / low temperature deviation, Power Failure & Low Battery. Alarm for Sensor failure, Abnormal Temperature, Abnormal Ambient Temperature, Low Voltage & Filter Blocking. Also, it has feature of turn-on delay and stopping interval protection, ensuring reliable operation.

•      Refrigerant: CFC Free Refrigerant, Ultralow Deep Freezer is adopted Secop compressor and famous EMB fan, which are energy-saving and environmentally friendly. The large finned condenser with a space between fins less and equal to 2mm provides effective heat dissipation.

•      Cooling Type: Direct Refrigeration

•      Compressor: International Quality, Hermetically sealed type 2 Sets of Compressor.

•      Condenser & Evaporator: High Efficient Air Cooled Condenser, Made of Copper. Rear to front hot air anti condensation. Low noise, green technology & energy saving.

•      Effective Thermal Insulation System: This Ultralow Deep Freezer is equipped with VIP Plus vacuum insulation foaming door with seal. And the six sides of the cabinet are made from high-performance vacuum insulation materials, which can perfectly improve the thermal insulation performance.

•      Temperature Test Port: 1, ⌀ 25mm.

•      To work on AC 110V/220V ±10%, 50/60 Hz Power Supply

•      Power Consumption: 10KW

•      Gross Weight: 350Kg Apprx.

•      Dimensions: 975 x 1140 x 2200 mm

INTERNAL CODE: - KDSM.8712.24314
