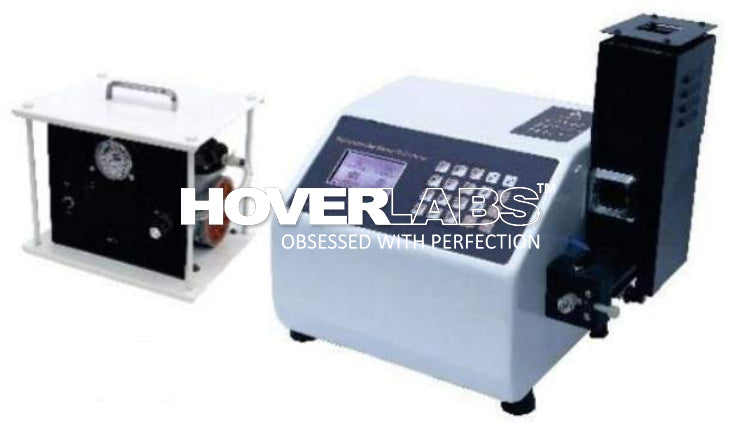

“HOVERLABS” Flame Photometer (Model: HV-FLM-101)
“HOVERLABS” Flame Photometer
(Model: HV-FLM-101)
TECHNICAL SPECIFICATION:
• System Package Main unit and Compressor unit
• Sensitivity (FS) Sodium (Na) 0.2-100 ppm Potassium (K) 0.1-100ppm
• Curve Fitting Accuracy ±2% of FS(High con. Range)
• Reproducibility ±1% FS 2 Digits in LC Mode ±2% FS 2 Digits in HC Mode
• Display Graphic LCD
• Filter Specification (Interface Filters with 10 nm Bandwidth) Na (589 nm) and K (768nm)
• Minimum Sample Volume 3.0 ml
• Aspiration Time 2-20 Sec. (Approx.)
• Operating Air Pressure 0.45 Kg/cm2
• Power 230V, ±10%, 50Hz
Additional Features
• Auto Ignition
• Gas leak sensor
• Auto gas cut-off
• Result Record and display upto 800 results storage
• Unit of Measurement- PPM
• Calibration Upto- 5 standards
• Data Processing Linear mode or quadratic
curve
• Fuel Gas- LPG
• Printer Port and RS-232 Port
• Air Compressor With built in air regulator and air Filter to deliver stable and
moisture/oil free air supply Pressure 0.40 to 1.0 Kg/cm2 (Maximum)
• Power Supply 230V+10% Mounting Preferable on floor
INTERNAL CODE: - KD. 2391.26124
