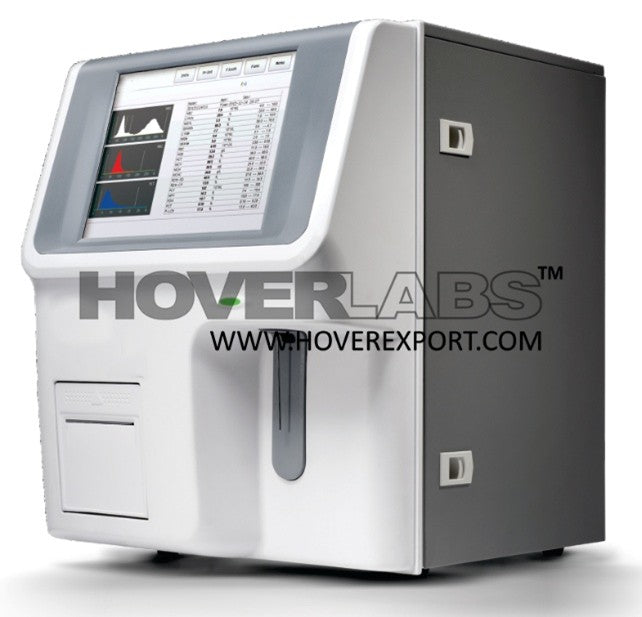

Fully Automatic Hematology Analyzer (Double Chamber) Model: HV-1290

“HOVERLABS” Fully Automatic Hematology Analyzer (Double Chamber)

Model: HV-1290

Technical Specification:

Fully automatic Hamatology analyzer for complete blood count Using Principle of electrical resistance for counting & SFT Method for HGB. Accurate & reliable results using digital filtering, blood cell overlaps calibration dual way high pressure cleaning, to avoid aperture blocking. Electro hydraulic separation structure design alarm function, auto wiping/cleaning of sample needle. Large storage up to 30 thousand results with histogram. Easy operation using touch screen with 640x480 LCD Display. Automatic sample sipping, mixing testing & cleaning in Built thermal the printer and external printer Optional.

- Parameters’, Neu#, Lym#, Mid#, Neu%, Lym%, Mid%, RBC, HGB, HCT,

CV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW, PCT, P-LCR (21 parameters)

- Histograms: WBC, RBC, PLT histogram

- Languages: English, Spanish, Italian, Portuguese, etc.

- Calibration: Manual and Auto-calibration

- Quality control :3 level QC, LJ graph

- Sample volume: Minimum volume 9μL whole blood

- Counting mode: Whole blood mode, pre-diluent mode

- Detection channel: Double channel for counting

- Input/Output :4 USB port, Supports USB keyboard and mouse

- Display:10.4-inch colour touch screen Liquid Crystal Display (LCD)

- Resolution:800x600

- Storage:500,000 sample results with histograms and patient information

- Reagent:2 reagent system (Diluent and LYSE)

- Printout: Thermal printer, support external printer

- Temperature :18-35°C

- Power:AC 100-240V, 50/60±1Hz

- Dimension: 420mm x495mm x430mm

- Weight:28kg

INTERNAL CODE: - KD. 2458.25730
