Product details

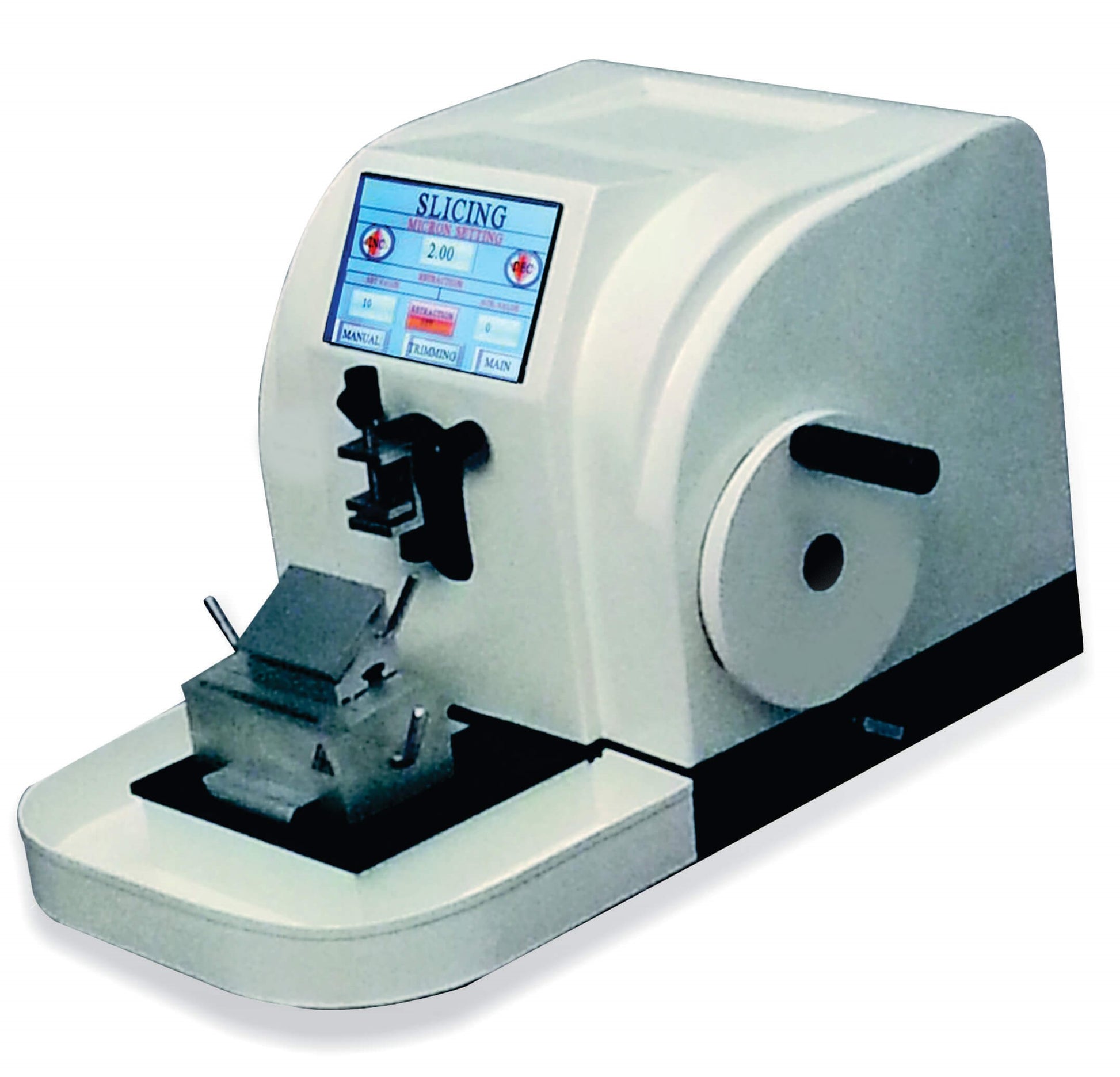

| Model No. – HV-HSM-1090A | Make – HOVERLABS |
SPECIAL FEATURES :
- Rust proof construction.
- Lockable hand wheel at any position allowing change of blade/specimen easier and safe.
- Lateral knife adjustment to ensure that the entire width of the blade is used without releasing the blade clamping mechanism.
- Large storage capacity on the top of the instrument for easy access of tools.
- Finger protection guard to protect the used from any injuries caused due to blade.
- Robust and stable base plate for max/imum stability to the microtome.
- Ergonomic and user friendly design.
- Section Waste tray to collect section waste and is easily removable for cleaning purposes.
- LCD Display with Feather Touch Keypad.
- Slicing/Trimming Mode.
- TOUCH Fast Forward/Backward Function.
- TOUCH Increase/Decrease Section Thickness.
- TOUCH Section Counter/Section thickness display.
- Motorized Feed & Coarse Drive in two speeds.
- Sectioning Mode: Semi-automatic, Fully automatic.
TECHNICAL SPECIFICATIONS:
Section thickness setting: 0.5-60µm
Setting values : from 0.5µm-2µm in 0.5µm increments
From 2µm- 20µm in 1µm increments
From 20µm-60µm in 5µm increments
Trimming Thickness Setting: 1µm-100µm
Setting values : from 1µm-20µm in 1µm increments
From 20µm- 60µm in 5µm increments
From 60µm- 100µm in 10µm increments
Minimum Setting value: 0.5µm
Object feed: 30mm
Vertical Stroke: 68mm
Specimen horizontal feed: 30mm
Max. Specimen Size: 50X50mm
Sectioning speed range: Adjustable
Operation: Semi-automatic, Fully automatic.
Nominal Voltage: 220V, 50Hz/110V, 60Hz
Other features are mentioned in our catalogue
