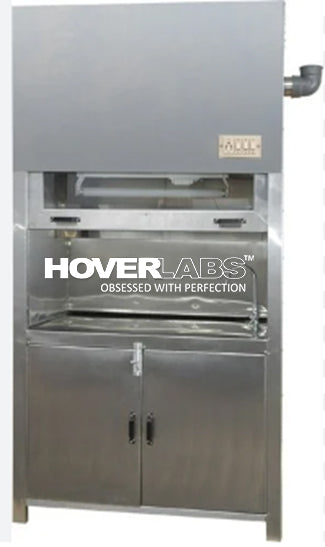

FUME HOOD SYSTEM (Model: HVS- FV305)

“HOVERLABS” FUME HOOD SYSTEM

(Model: HVS- FV305)

The work surface of granite is fitted with small wash basin & good quality tap. Sliding sash made of Polycarbonate toughened glass moves vertically up and down with concealed counter balanced weights. Chamber is fitted with 36W poly-carbonate fluorescent light assembly. Space underneath the work surface is provided with storage compartment. 15/5 Amp socket with switches is provided for light and exhaust system. Supplied with cord and plug to work on 220 volts 1/3 phase 50Hz A.C. Complete with motor blower for exhaust system and Duct to take out fumes.

TECHNICAL SPECIFICATION:

•      These are designed to throw-out all toxic/harmful vapors, thus protecting costly instruments and the person working in the lab.

•      Made of heavy-duty Mild Steel Sheet duly powder coated.

•      Interior fixed with cemented asbestos sheet.

•      Working table top is made of stainless steel 316 Acid Resistant and a small wash basin SS 316 with connections provided for inlet and outlet of water.

•      Front shutter: Toughened Float Glass and moves vertically up and down with concealed counter balanced weight.

•      The unit is fitted with fluorescent light.

•      Base cabinet with height 2.5 ft. & Ducting for Hood.

•      Efficient exhaust blower fitted on top of the chamber to exhaust fumes. 2-meter-long electric cord.

•      The front facing panel is fitted with 15/5 Amp socket with switches for exhaust system and fluorescent light.

•      To work on 220 / 230 volts AC Supply.

•      Working Size (WxDxH): 4’ x 2’ x 2’ (1200 x 600 x 600 mm)

INTERNAL CODE: - KDSM.2259.24919
